Grain Carts
Increase Your Harvest Efficiency

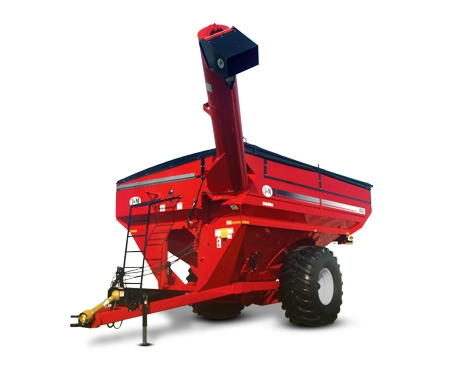

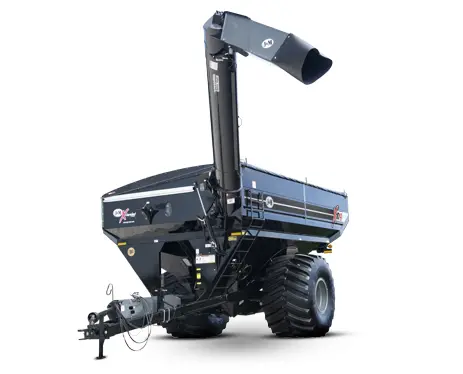

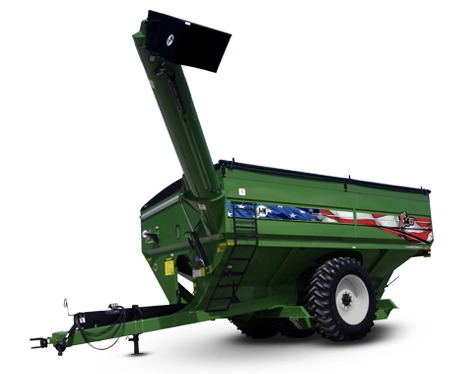

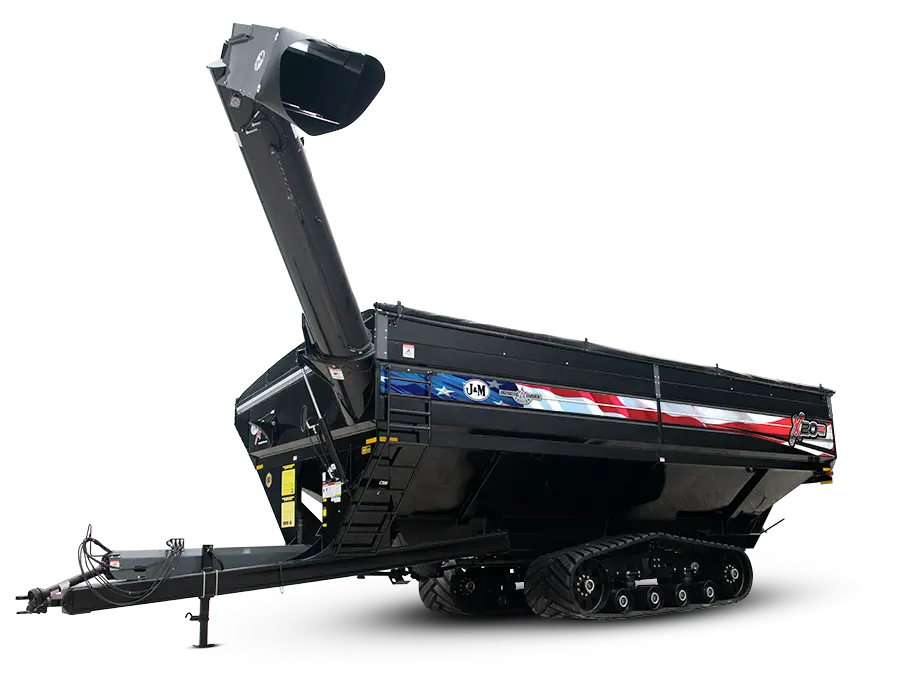

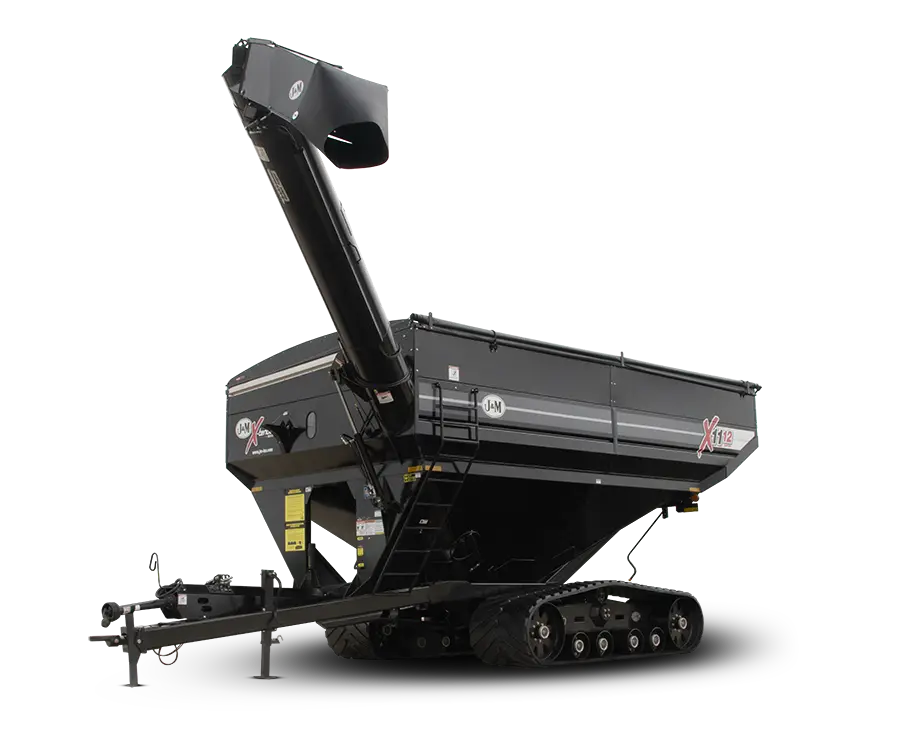

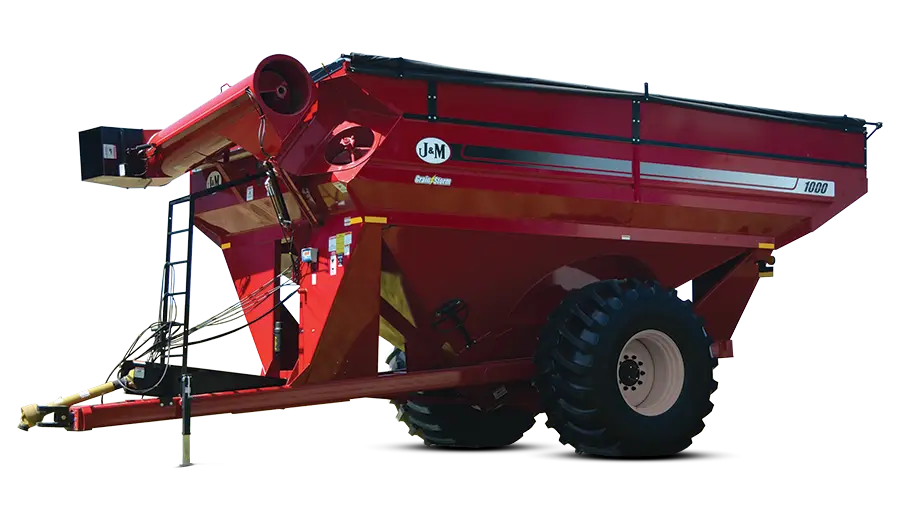

Grain carts are pulled by a tractor in the field and transport grain from the combine to the truck. J&M Manufacturing offers four types of grain carts to suit your specific farming needs. All our grain carts feature a front fold design allowing 100% visibility during the folding sequence and while unloading. Our new 14 series grain carts redefines efficiency and ease of use in grain handling, offering the fastest unload speeds and the largest capacities available in single auger carts. Our Classic Fold grain carts are the ones that put us on the map. Our X‑Tended Reach carts give farmers more reach and faster unloading. The X‑Tended Dual Auger carts give the reach of a single auger cart with the speed of a dual auger unload.
| MODELS |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1714 X-Tended Reach | 2014 X-Tended Reach | 1132 X-Tended Reach | 1532 X-Tended Reach | 1732 X-Tended Reach | 2032 X-Tended Reach | 2332 X-Tended Reach | 812 X-Tended Reach | 1012 X-Tended Reach | 1112 X-Tended Reach | 1122 X-Tended Reach | 1222 X-Tended Reach | 1312 X-Tended Reach | 1412 X-Tended Reach | 1522 X-Tended Reach | 525 Classic Fold | 620 Classic Fold | 750 Classic Fold | 875 Classic Fold | 1000 Classic Fold | |
| CAPACITY | 1,640 Bushels | 1,950-2040 Bushels | 1,150 Bushels | 1,520 Bushels | 1,675 Bushels | 1,970 Bushels | 2,260 Bushels | 875 Bushels | 1,025 Bushels | 1,150 Bushels | 1,130 Bushels | 1,250 Bushels | 1,325 Bushels | 1,400 Bushels | 1,475 Bushels | 525 Bushels | 620 Bushels | 750 Bushels | 875 Bushels | 1,025 Bushels |
| AUGER SIZE | 22" Bullet | 22" Bullet | 22" Vertical / 20" Horizontal | 22" Vertical / 20" Horizontal | 22" Vertical / 20" Horizontal | 22" Vertical / 20" Horizontal | 22" Vertical / 20" Horizontal | 18" Vertical | 20" Bullet | 20" Bullet | 20" Bullet | 20" Bullet | 20" Bullet | 20" Bullet | 20" Bullet | 14" Vertical | 14" Vertical | 18" Vertical | 18" Vertical | 20" Vertical |
| UNLOAD RATE | 900+ (bu/min) | 900+ (bu/min) | 740+ (bu/min) | 760+ (bu/min) | 790+ (bu/min) | 810+ (bu/min) | 840+ (bu/min) | 500 (bu/min) | 600+ (bu/min) | 600+ (bu/min) | 600+ (bu/min) | 600+ (bu/min) | 600+ (bu/min) | 600+ (bu/min) | 600+ (bu/min) | 185+ (bu/min) | 185+ (bu/min) | 400+ (bu/min) | 400+ (bu/min) | 500+ (bu/min) |
| SIDE REACH | 10'-4" | 10'-4" | 11'-0" | 11'-0" | 11'-0" | 11'-0" | 11'-0" | 11'-7" | 10'-10" | 10'-10" | 10'-10" | 10'-10" | 10'-5" | 10'-5" | 10'-5" | 7'-5" | 7'-5" | 7'-0" | 7'-0" | 6'-4" |
| FORWARD REACH | 4'-3" | 4'-3" | 1'-8" | 1'-8" | 1'-8" | 1'-8" | 1'-8" | 0'-1" | 2'-7" | 2'-7" | 2'-7" | 2'-7" | 2'-7" | 2'-7" | 2'-7" | 0'-10" | 0'-10" | 0'-5" | 0'-9" | 0'-5" |
| LOW SIDE HEIGHT | 11'-6" | 12'-6" | 10'-1" | 11'-7" | 9'-9" | 10'-7" | 11'-3" | 11'-6" | 10'-11" | 11'-11" | 11'-3" | 12'-4" | 11'-9" | 12'-3" | 11'-10" | 10'-8" | 11'-4" | 11'-4" | 11'-6" | 10'-11" |
| LEANER | No | Yes | No | No | Yes | Yes | Yes | No | No | No | Yes | Yes | No | No | Yes | No | No | No | No | No |
| RIGHT SIDE AUGER OPTION | Yes | Yes | No | Yes | No | No | No | No | Yes | Yes | No | No | Yes | Yes | No | No | No | No | No | No |
| UNDERCARRIAGE OPTIONS | Single, Tracks | Single, Tracks | Singles, Walking Tandem Duals, Tracks | Singles, Walking Tandem Duals, Tracks | In-line Tandem Wheels, Tracks | In-line Tandem Wheels, Tracks | In-line Tandem Wheels, Tracks | Singles | Singles, Walking Tandem Duals, Tracks | Singles, Walking Tandem Duals, Tracks | Singles, Walking Tandem Duals, Tracks | Singles, Walking Tandem Duals, Tracks | Singles, Walking Tandem Duals, Tracks | Singles, Walking Tandem Duals, Tracks | Singles, Tracks | Singles | Singles | Singles | Singles | Singles |
