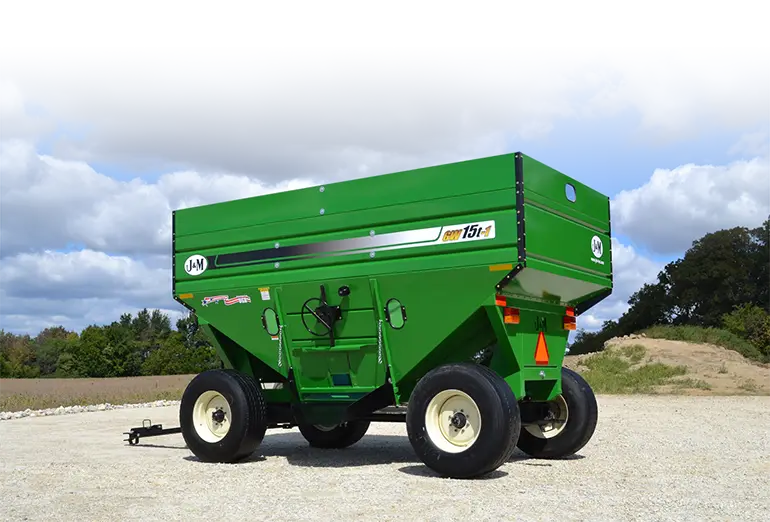

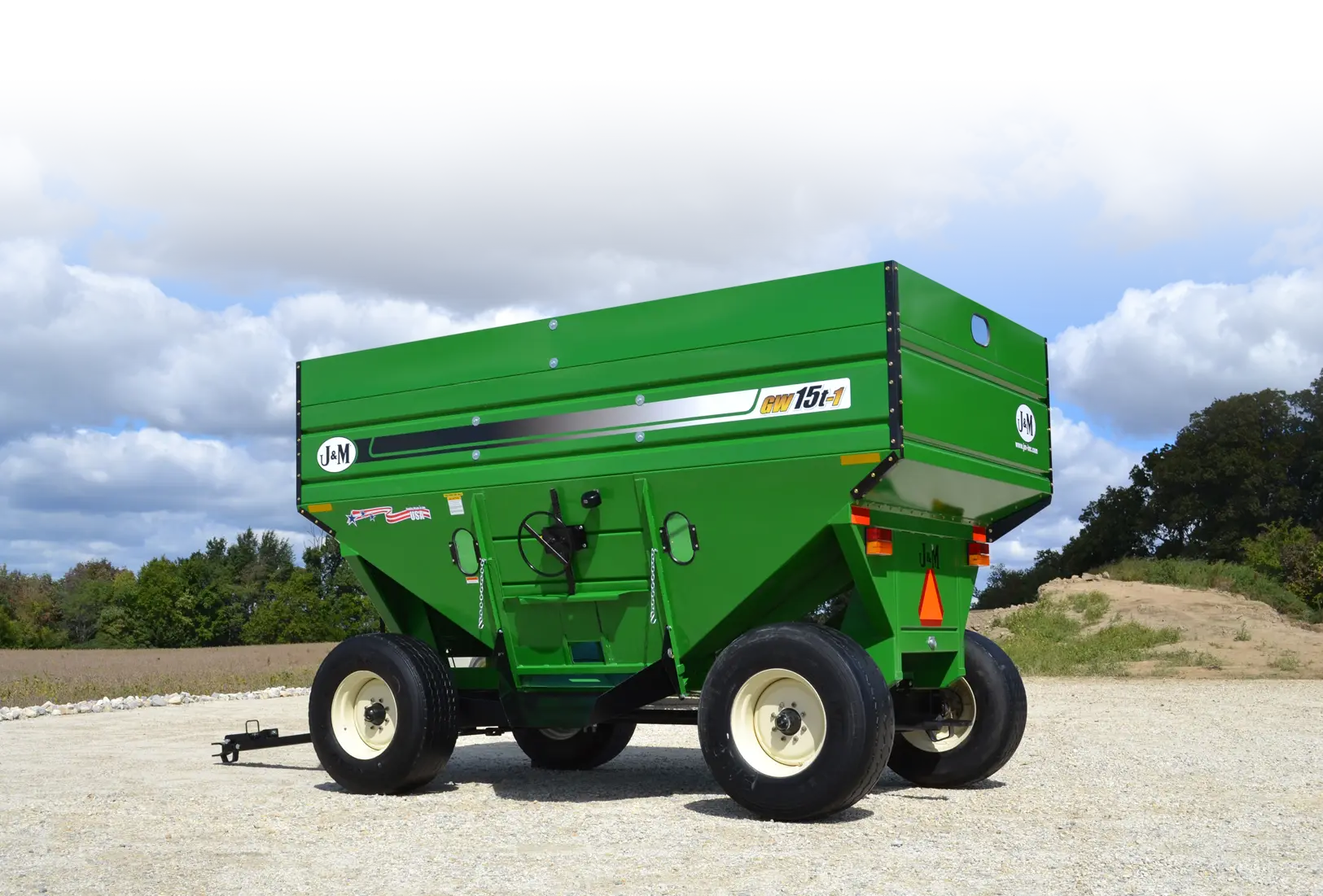

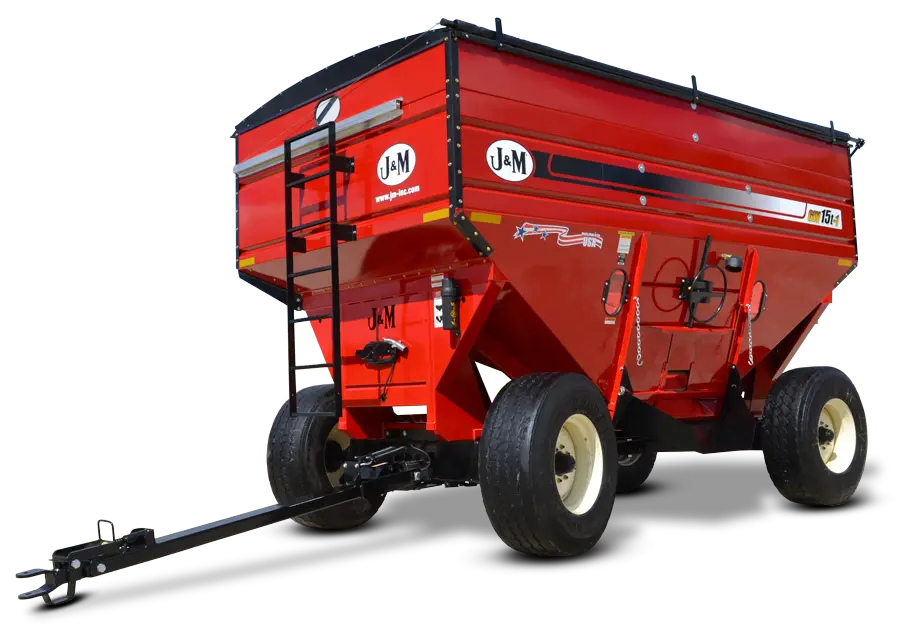

Tank Design is Key to Excellent Cleanout
A common misconception is that all wagons are designed the same. Therefore, it is assumed that the wagon with the greatest amount of backslope will clean out better. This is not necessarily true.
Some competitor wagons rely solely on steep slopes and gravity for unloading. With their design, the angle of slope becomes critical for complete cleanout, especially in higher moisture grains. With these designs, an extra degree of slope could make all the difference.
We take the design of the tank one step further. Not only are our wagons engineered with a steep back slope, but we also utilize a Sump Design with valley flats to maximize cleanout.
Valley flats don’t allow the grain to hang up in the corners of the tank while the sump design “pulls” grain into the unloading chute.
Not all wagons utilize this feature! This is why J&M gravity wagons have built an excellent reputation for complete cleanout even in high moisture grains!
Specifications
| GW10t-1 | GW15t-1 | |
|---|---|---|
| Capacity | 10,0 t | 14,7 t |
| Door Width | 91,4 cm | 121,9 cm |
| Chute Height | 43,2 cm | 35,5 cm-48,2 cm |
| Hopper Construction | 14 Gauge Steel | 12 Gauge Steel |
| Understructure | 7,6 cm×15,2 cm Tubing | 7,6 cm×15,2 cm Tubing |
| Taillights | Standard | Standard |
| Front Ladder | Standard | Standard |
| Center Dump Deflector | Optional | Optional |
| Spindles | 6,4 cm Diameter | 7,6 cm Diameter |
| Wheels | 22.5×825 or 22.5×13.5 - 8 Bolt | 22.5×13.5 - 8 Bolt |
| Tires | 15‑22.5 or 16.5‑22.5 | 15‑22.5 or 16.5‑22.5 |
| Hydraulic Brakes | Optional 2-Wheel Drum | Optional 2-Wheel Drum |
| Weight | 1655 kg | 2381 kg |

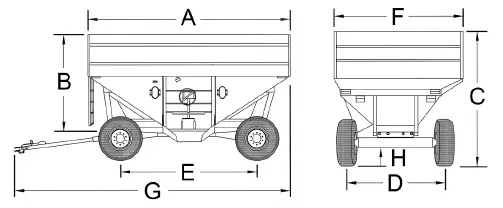

DIMENSIONS
| GW10t-1 | GW15t-1 | |
|---|---|---|
| A | 375,9 cm | 457,2 cm |
| B | 218,4 cm | 238,7 cm |
| C | 279,4 | 304,8 |
| D | 208,3 cm | 223,5 cm |
| E | 261,6 cm | 314,9 cm |
| F | 238,8 cm | 254,0 cm |
| G | 546,1 cm | 629,9 cm |
| H | 38,1 cm | 38,1 cm |
Patented Uni-Swivel Hydraulic Augers

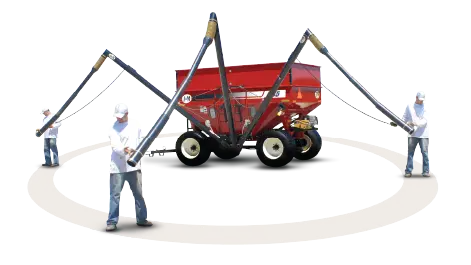

The patented Uni-Swivel Hydraulic auger design allows the auger to swivel to any working position while maintaining a downwardly positioned discharge spout. The adjustable hopper can fit virtually any door size. Unique pulley and track stabilizer design allows the auger to stay in position and not pull to center.
Uni-Swivel Auger
| Specifications | |
|---|---|
| Diameter | 15,2 cm |
| Length | 457,2 cm |
| Flighting | Steel or Poly-Cup Plastic |
| Hopper | Adjustable, fits most boxes |
| Auger Tube | 14 Gauge seamless steel |
| Winch | Standard |
| Auger Pivot | Patented Uni-Swivel design |
| Sump Design Hopper | Yes |
| Unloading Height Minimum Maximum |
213,0 cm 335,2 cm |
| Height of Auger in Saddle | 304,8 cm |
| Front to Back Swing Range | 1310 cm* |
| Outward Spout Reach | 579,1 cm* |
| Discharge Rate (Corn/Soybeans) | 380,0 kg/min |
| Discharge Rate (Fertilizer) | 453,6 kg/min |
| *With optional 3-stage telescoping spout | |
Augermate
| Specifications | |
|---|---|
| Engine | Briggs & Stratton or Honda |
| Starter | Manual Pull or Electric |
| Engine Size | 8 hp |
| Oil Reservoir | 5 Gallons |
| Mounting Frame | Standard |
