6000 Series NitroGro™ Nitrogen Applicators
Place Your Nitrogen Where It Counts...When It Counts
Model 6018 or 6026 Nitro Gro™ liquid fertilizer applicators feature a narrow transport width and a custom designed 1,850 or 2,600 gallon tank. The 55' to 62'-4" working widths accommodate coulters placed at 20", 22" or 30" row spacings to suit your farming needs. Single wheel or walking tandem dual wheel undercarriage available on model 6018. Model 6026 applicators are standard with walking tandem undercarriage.
6000 Series NitroGro applicators feature a short coupled tongue design for better trailing and less crop damage while turning.

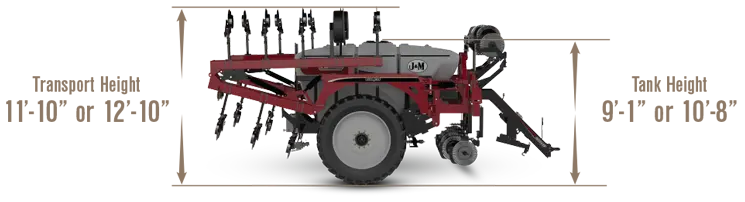

Industry-Leading Transport Width & Height
Patent-Pending Wing Design
Patent-pending wing design with customized wheel tank offers an industry leading 11'-9" transport width and low 9'1" or 10'-8" tank height (11'-10" or 12'-10" overall transport height) for a lower center of gravity and greater stability.

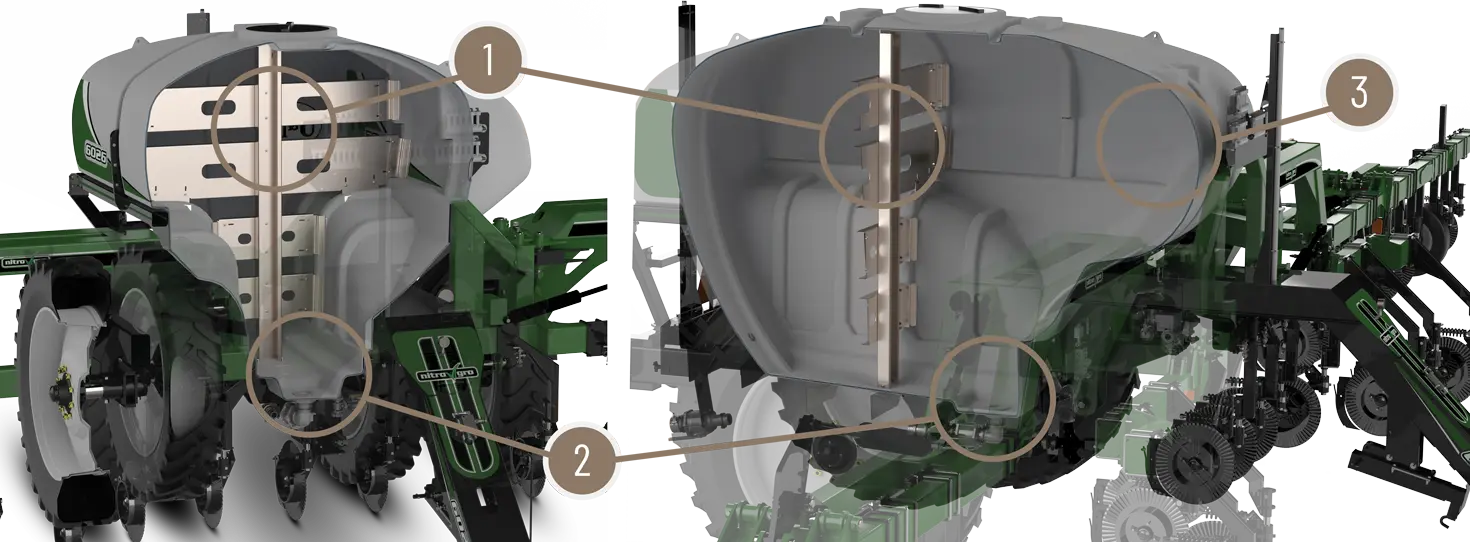

Custom Tank Design
-
1Baffles
Stainless steel baffles keep the weight properly distributed, even over uneven terrain.
-
2Tank Design
"Nose" tank design keeps the weight forward to ensure the coulters remain at proper depth even in the toughest soils.
-
3Tank Sump
Extra deep 10-gallon sump to ensure the pump remains primed.
-
1Baffles
Stainless steel baffles keep the weight properly distributed, even over uneven terrain.
-
2Tank Design
"Nose" tank design keeps the weight forward to ensure the coulters remain at proper depth even in the toughest soils.
-
3Tank Sump
Extra deep 10-gallon sump to ensure the pump remains primed.

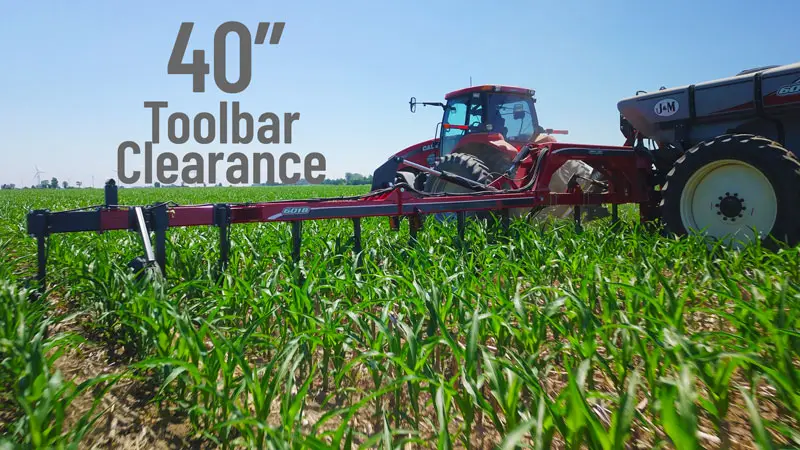

Industry's Highest Toolbar Clearance
NitroGro 6000's industry best 40" toolbar clearance extends your application window and eases worry of getting into the field late.
Para-Linkage Coulters
J&M's Para-Linkage coulter design keeps the applicator knives consistently in the ground while going over rocks and hard soil. As the Para-Linkage coulter rises, the knives rise at the same rate as the disc to ensure consistent fertilizer application at the desired depth. On traditional coulters, as the disc moves over an obstacle the knives swing up at an arc. This causes the knife depth and the fertilizer application to be inconsistent.
Para-Linkage coulters feature greaseless poly-bushings at all pivot locations to reduce maintenance and fatigue.
Row Closers
Adding row closers to your NitroGro seals the nitrogen in place, ensuring more is absorbed by the plant and less is wasted.
Learn more about row closers
SPECIFICATIONS
| Nitrogro 6018 | NitroGro 6026 | |
|---|---|---|
| Capacity | 1,850 Gallons | 2,600 Gallons |
| Base Width | 60'-0" | 60'-0" |
| Transport Width | 11'-9" | 11'-9" |
| Transport Length | 25'-0" | 25'-0" |
| Transport Height | 11"-10" | 12"-10" |
| Height to Top of Tank | 9"-1" | 10"-8" |
| Empty Weight | 18,500 lbs | 19,000 lbs |
| Hitch to Axle | 14'-0" | 14'-0" |
| Toolbar Ground Clearance | 40" | 40" |
