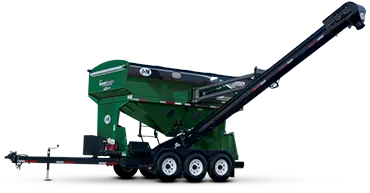

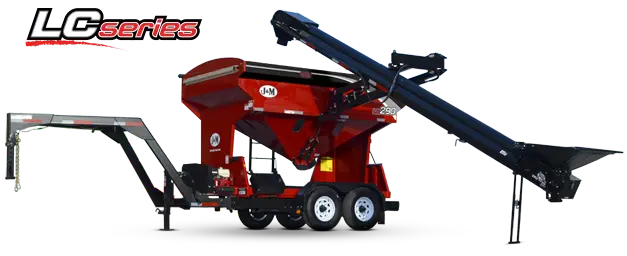

LC SpeedTenders - Bulk Seed Tenders
The LC Series SpeedTenders offer improved features to maximize your planting efficiency:
– Larger Capacity: LC Series SpeedTenders improved tank and patented support arm design features a large capacity tank with lower overall height.
– Lower Center of gravity: Allows you to carry more seed with a lower center of gravity, making it easier to fill and more stable to transport over uneven terrain.
– Longer Conveyor: The extra long 22' conveyor with large diameter round tube belt design makes it easy to reach the tallest and widest planters, then rotate 180° for easy self‑filling.
– Luxury Controls: Standard luxury controls on all J&M SpeedTenders allow the operator to easily place the conveyor into the unload or self-fill positions and gives greater flexibility when using the conveyor as a stand alone unit to unload adjacent gravity wagons.
Patented V-Belt Conveyor Reduces Seed Damage and Maintenance
The unique conveyor design features a patented V-guided belt that is positioned in a recessed portion of the end rollers to ensure the belt remains centered, reducing the need for adjustment and minimizing the chance of seed damage, premature wear and added maintenance expense. Because the Tru-Trak belt consistently stays in alignment, the skirting at the top of the conveyor can be designed with a more precise fit that reduces the potential for seed damage and collecting debris in the clean-out area.
Specifications
| Model LC 290 | Model LC 390 | |
|---|---|---|
| Capacity | 290 Seed Units 290 Cubic Feet |
390 Seed Units 390 Cubic Feet |
| Weight (Empty) | 6,100 lbs | 7,500 lbs |
| Tongue Weight (Loaded) | 1,650 lbs 1,207 lbs (Gooseneck) |
1,380 lbs 1,453 lbs (Gooseneck) |
| Conveyor | 22' Long 8" Tube Conveyor |
22' Long 8" Tube Conveyor |
| Unload Rate | 30 bu/min | 30 bu/min |
| Conveyor Reach (with telescoping spout) |
49' (front to rear swing) | 49' (front to rear swing) |
| Axles | Two (2) 7,000 lb Torsion-Flex Axles | Three (3) 7,000 lb Torsion-Flex Axles or Two (2) 10,000 lb Torsion-Flex Axles |
| Electric Brakes | Yes | Yes |
| Engine | 13 hp Honda Motor with Electric Start | 13 hp Honda Motor with Electric Start | Measured with soybeans at 140,000 seeds per unit weighing 45 lbs. |
DIMENSIONS
| LC 290 A–frame |
LC 290 Gooseneck |
LC 390 A–frame |
LC 390 Gooseneck |
|
|---|---|---|---|---|
| A | 5'–1" | 2'–10" | 4'–9" | 2'–8" |
| B | 1'–6" min 1'–10" max |
1'–6" min 1'–10" max |
2'–7" min 3'–3" max |
2'–7" min 3'–3" max |
| C | 21'–3" | 23'–5" | 22'–1" | 24'–4" |
| D | 9'–3" | 9'–3" | 9'–8" | 9'–8" |
| E | 3'–10" | 3'–10" | 3'–10" | 3'–10" |
| F | 17'–11" | 17'–11" | 17'–11" | 17'–11" |
| G | 8'–6" | 8'–6" | 8'–6" | 8'–6" |
| H | 8'–7" min 16'–4" max |
8'–7" min 16'–4" max |
8'–7" min 16'–4" max |
8'–7" min 16'–4" max |
| I | 12'–10" min 17'–4" max |
12'–10" min 17'–4" max |
12'–10" min 17'–4" max |
12'–10" min 17'–4" max |
| J | 9'–9" | 9'–9" | 10'–2" | 10'–2" |
| K | 11'–0" | 11'–0" | 11'–0" | 11'–0" |
