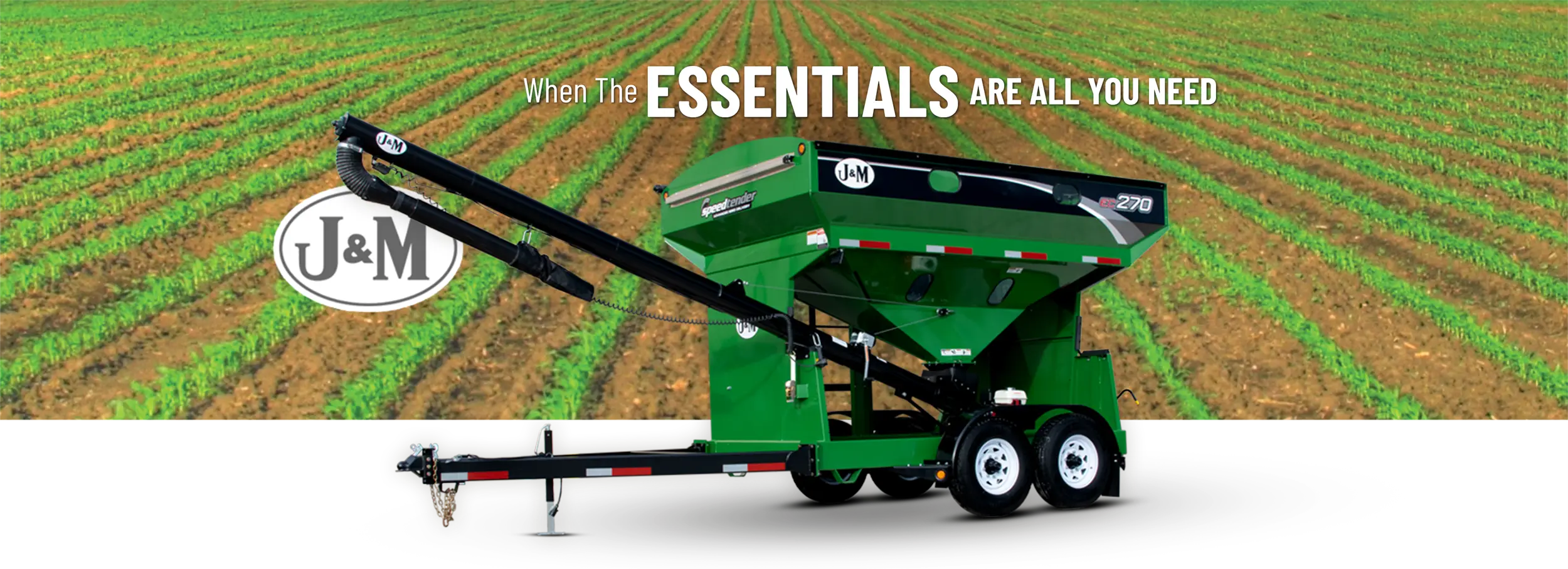

EC Series SpeedTender™
When the Essentials Are All You Need In A Seed Tender

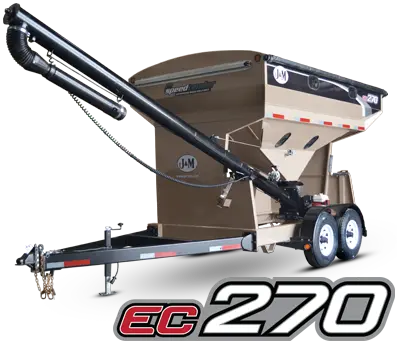

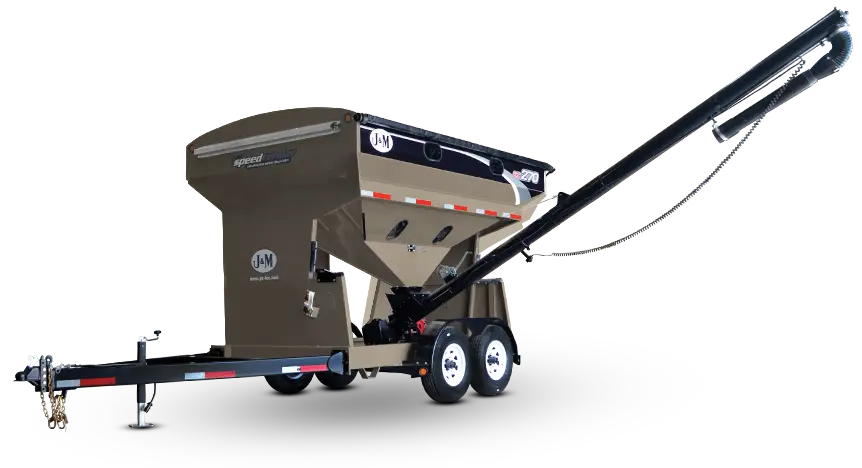

J&M's EC 270 seed tender gives you all the ESSENTIAL features you need in a seed tender for a fast and efficient planting season. However, our economy design doesn't sacrifice performance. J&M's EC 270 seed tenders are designed with quality components that ensure a quick, easy, and consistent unloading experience.
The 270 cubic feet storage tank features a low-profile design that makes it easier to fill and more stable to transport. You can easily change from one seed variety to another with the separate compartments with manual opening doors. The graphite‑coated interior ensures complete cleanout and the multiple viewing windows offer excellent visibility to see inside the tank.

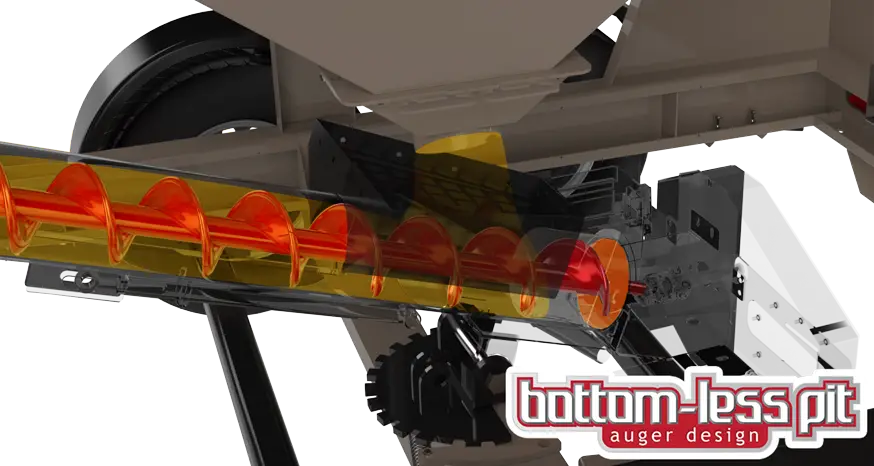

Industry Exclusive "Bottom‐less Pit" Auger Design
Significantly Minimize Seed Damage
Our auger design eliminates seed cracking by extending the distance between the intake area and bottom end of the auger. This increased distance prevents seed that is not immediately carried up the auger from grinding and cracking at the bottom of the tube.

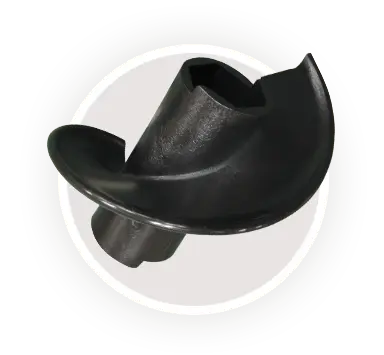

The poly-cup interior flighting is cup shaped to gently and quickly carry the seed up the auger. Interlocking sections make it easy to replace damaged flights, if necessary.
The outer tube and flighting diameters are also correctly sized to prevent seed from getting caught against the tube and cracking.
This design virtually eliminates the chance of cracking seed and gives you optimal performance for maximum germination rates when planting. This auger design rivals the performance of a typical round belt conveyor design, but without the inflated price tag.
Standard Features

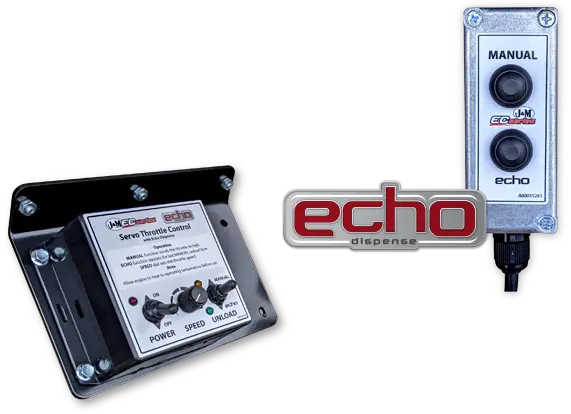

Echo Dispense System
All other economy units use a linear actuator, so the operator has to hold the INCREASE throttle button to unload and DECREASE throttle button to stop. This can be extremely difficult to dispense seed accurately, especially with a row planter.
With J&M's Echo Dispense System, a single button automatically increases the throttle to the desired speed, ensuring greater accuracy. After the first box has been filled, simply press the "Echo" button to mimic the timing and easily fill the rest of the boxes consistently and evenly.
Compatible with our Talc Applicator.

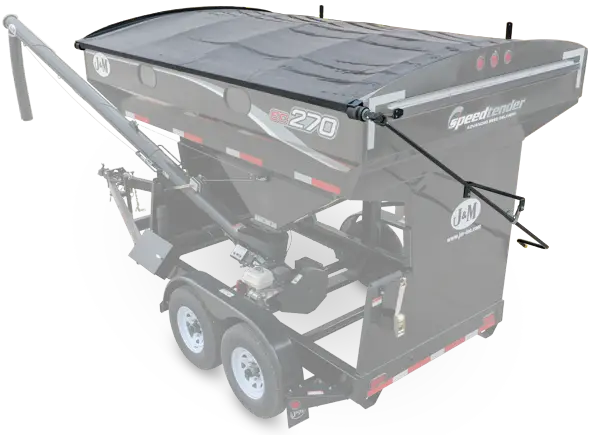

Glide Right Roll Tarp
Smoother Rolling, Reduced Binding and Ultimate Tracking

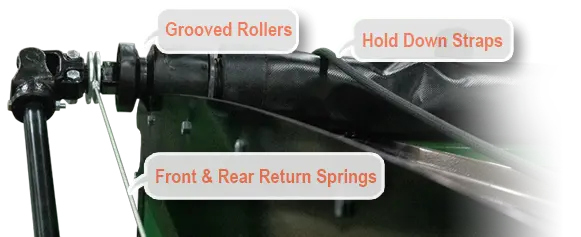

The roll tarp design features grooved rollers that roll along the edge of the end caps for consistent tracking and reduced misalignment. Front and rear return springs apply even tension to each end of the tarp to reduce binding and prevent uneven rolling compared to designs that only utilize one spring and cable assembly.
Manual Controls

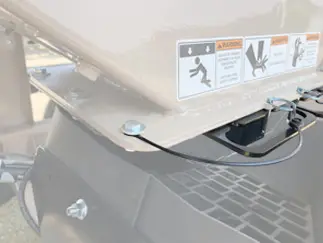

Door Opening
Doors slide in and out and are easy to open or close.

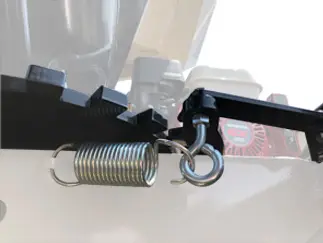

Auger Swing
Auger swings effortlessly and locks into place.

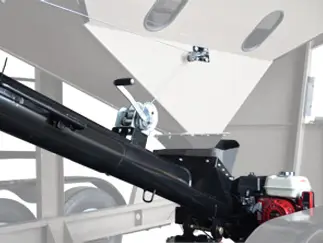

Auger Height
Winch and cable easily raises and lowers the auger where you need it.
More Standard Features
- 4.8 hp Honda electric start engine
- Two 7,000 lbs suspension axles with 235/85R16 tires
- Divided hopper for quick and easy variety changes
EC 270 SpeedTenders™ Options

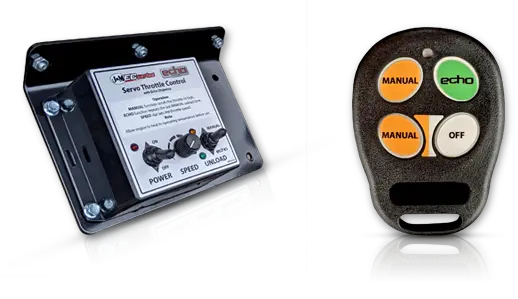

EC 270 Deluxe Wireless Echo Remote Control
Wireless remote in place of standard wired control.

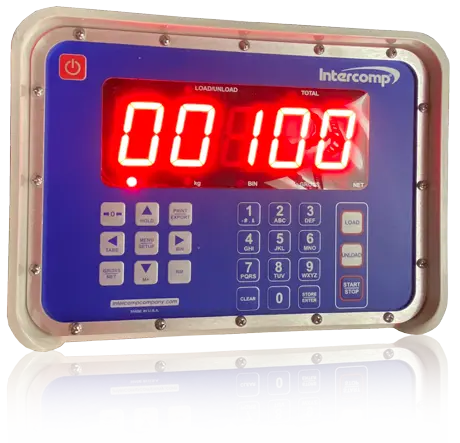

Electronic Weigh System
The most effective way to give you live seed weight and precisely distribute seed to your planter is with an advanced scale system. J&M's electronic scale systems for the EC 270 offer an Intercomp monitor with wireless controls and bin tracking capabilities.

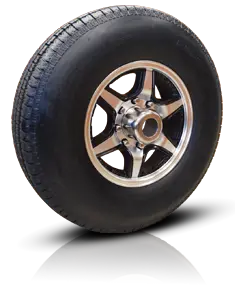

Aluminum Wheels
Four (4) 16" aluminum wheels in place of standard wheels on 235/85R16 tires.
Patriotic Farmer Edition
To honor the patriotism of the American farmer, upgrade to the Patriotic Farmer Edition with an American flag stripe. A portion of the proceeds generated from the American flag decal will be donated to national nonprofit organizations that provide assistance to farm families who have experienced a major injury, illness or disaster, or mobilize veterans to transition them from military service to farming.
Learn more about Patriotic Farmer Edition seed tenders
More Options
- Choose from A-frame, gooseneck, or trailer-mount options to fit your towing vehicle
- 3-stage telescoping spout or 36" rubber spout
- Talc applicator
- Spare tire and wheel
EC 270 SpeedTender Specs and Dimensions
SPECIFICATIONS
 |
|
|---|---|
| Capacity | 270 Seed Units 270 Cubic Feet |
| Weight (Empty) | 4,400 lbs |
| Tongue Weight (Loaded) | 1,086 lbs |
| Auger | 19" Length 7" Diameter |
| Auger Reach | 44' Front to Rear Swing with Telescoping Spout |
| Axles | Two (2) 7,000lbs Torsion-Flex Axles |
| Electric Brakes | Yes |
| Engine | 4.8 hp Honda Motor with Electric Start |
| *Measured with soybeans at 140,000 seeds per unit weighing 45 lbs. | |
DIMENSIONS
| A-Frame | Gooseneck | |
|---|---|---|
| A | 2'-6" | -0'-3" |
| B | 1'-6" (Minimum) 1'-10" (Maximum) |
2'-5" (Minimum) 3'-1" (Maximum) |
| C | 20'-8" | 23'-3" |
| D | 9'-4" | 9'-4" |
| E | 7'-0" (Minimum) 13'-0" (Maximum) |
7'-0" (Minimum) 13'-0" (Maximum) |
| F | 12'-4" (Minimum) 15'-0" (Maximum) |
12'-4" (Minimum) 15'-0" (Maximum) |
| G | 9'-10" | 9'-10" |
| H | 9'-5" | 9'-5" |
