SpeedTender™ Pro c4•50 Seed Tenders
First Class Seed Delivery

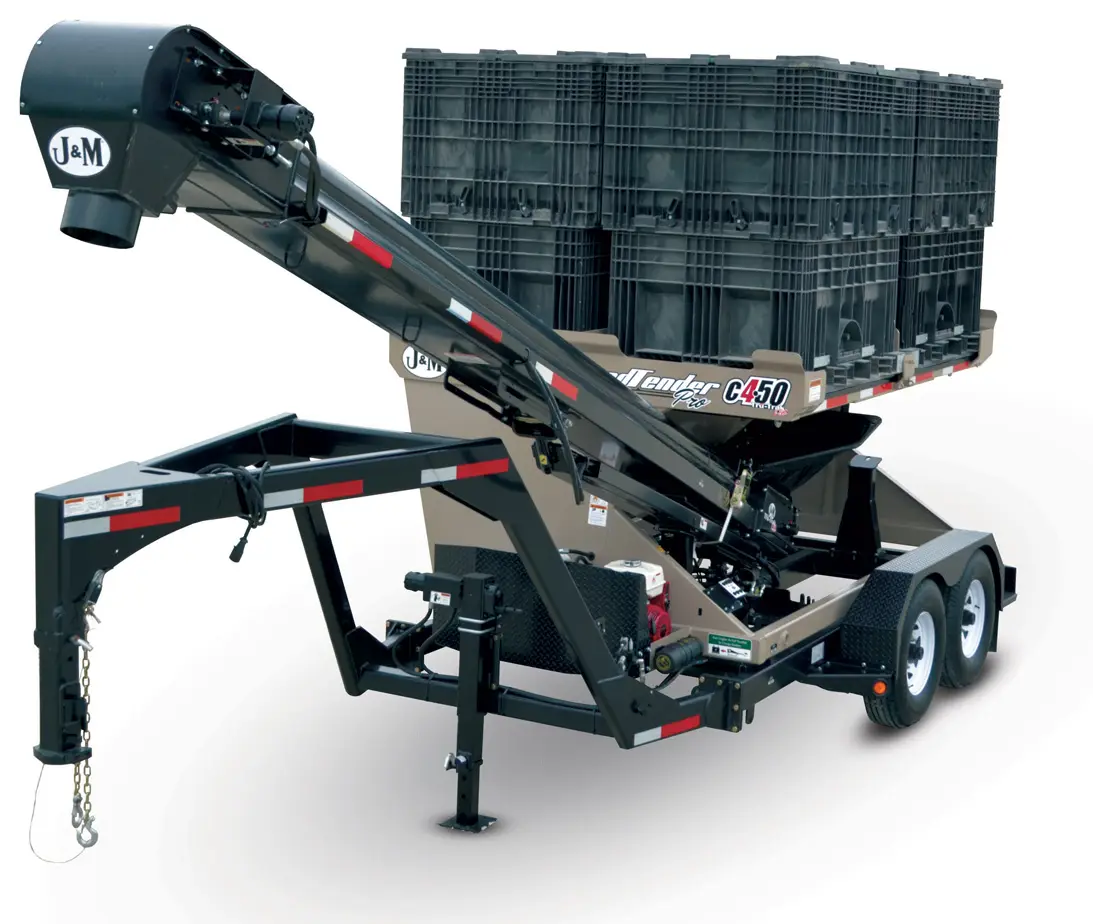

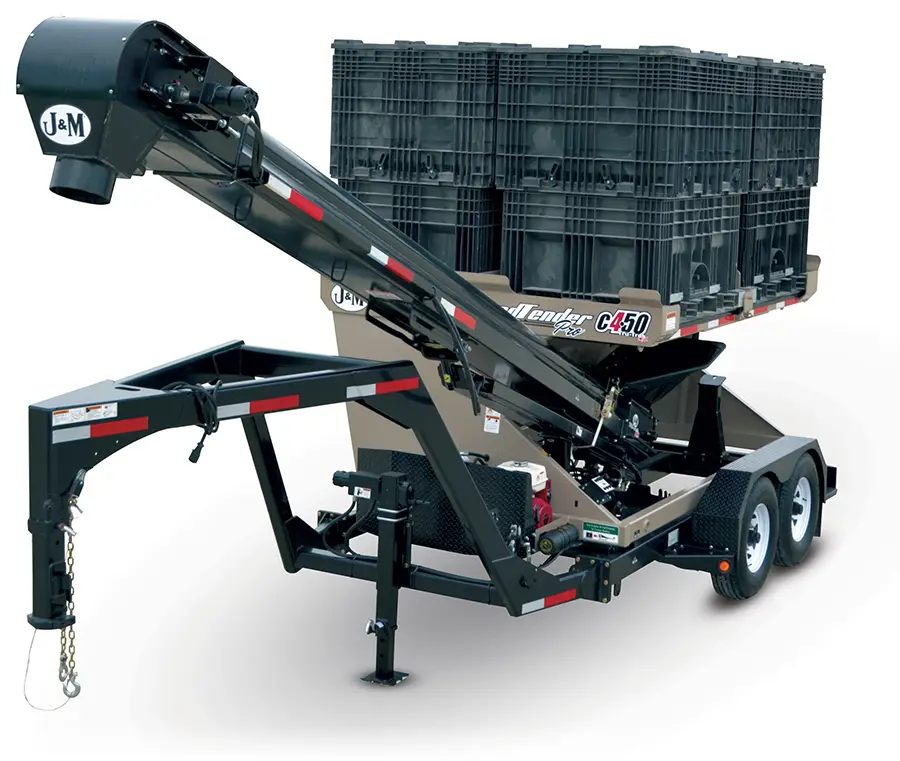

The SpeedTender™ Pro c4•50 seed tender is designed to carry four, 50‑unit tote seed boxes from farm to field. A standard, wired all-function controller starts and stops the conveyor, raises and lowers the conveyor, hydraulically swings the conveyor, and opens and closes the doors. An extra long 8"×22' round tube conveyor with patented Tru‑Trak V‑Belt design quickly and gently transfers seed for maximum germination.
Patented V‑Belt Conveyor
Reduces Seed Damage and Maintenance
The unique conveyor design on J&M's SpeedTender Pro c4•50 features a patented V‑guided belt that is positioned in a recessed portion of the end rollers to ensure the belt remains centered, reducing the need for adjustment and minimizing the chance of seed damage, premature wear, and added maintenance expense. Because the Tru‑Trak belt consistently stays in alignment, the skirting at the top of the conveyor can be designed with a more precise fit that reduces the potential for seed damage and debris collection in the clean‑out area.

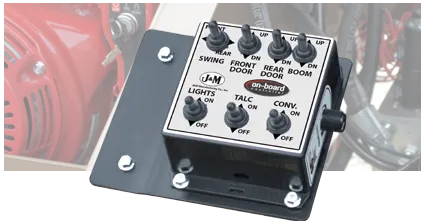

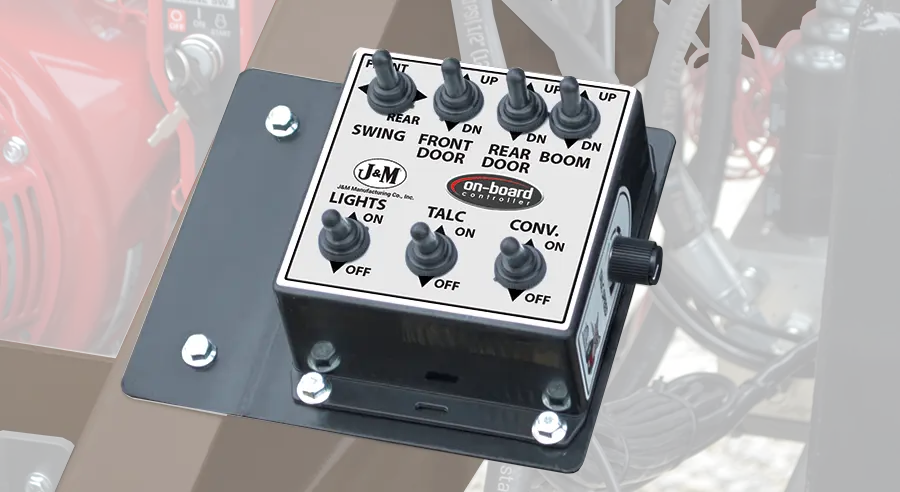

On‑Board Controller
Keeps You on the Go
The standard On‑Board Controller is a secondary control option for both the standard wired and optional wireless units in case the batteries fail, the remote is misplaced or a cord is damaged. The on-board controller can be used in conjunction with the current controls, allowing the operator to switch back and forth seamlessly, and has the optional talc applicator controls included.

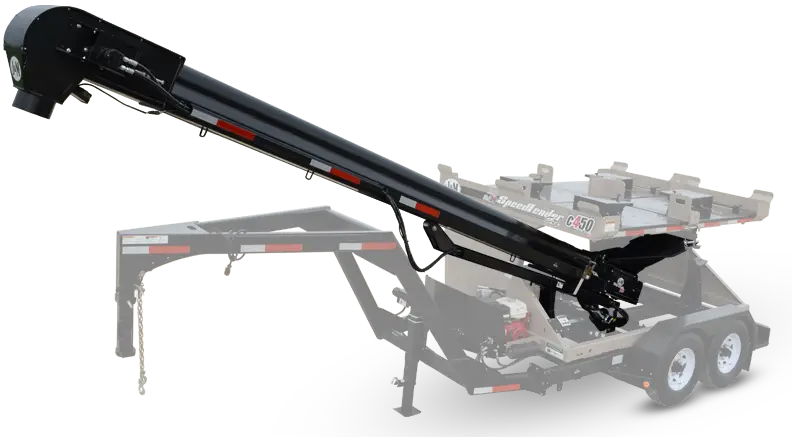

22' Extra Long, 8" Wide Conveyor
Reach Higher and Wider
SpeedTender™ Pro c4•50 seed tenders feature an extra long conveyor that offers greater height and reach to service the tallest and widest planters.
Standard Features

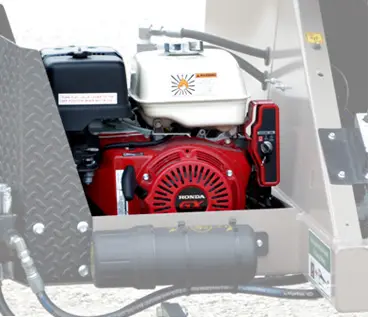

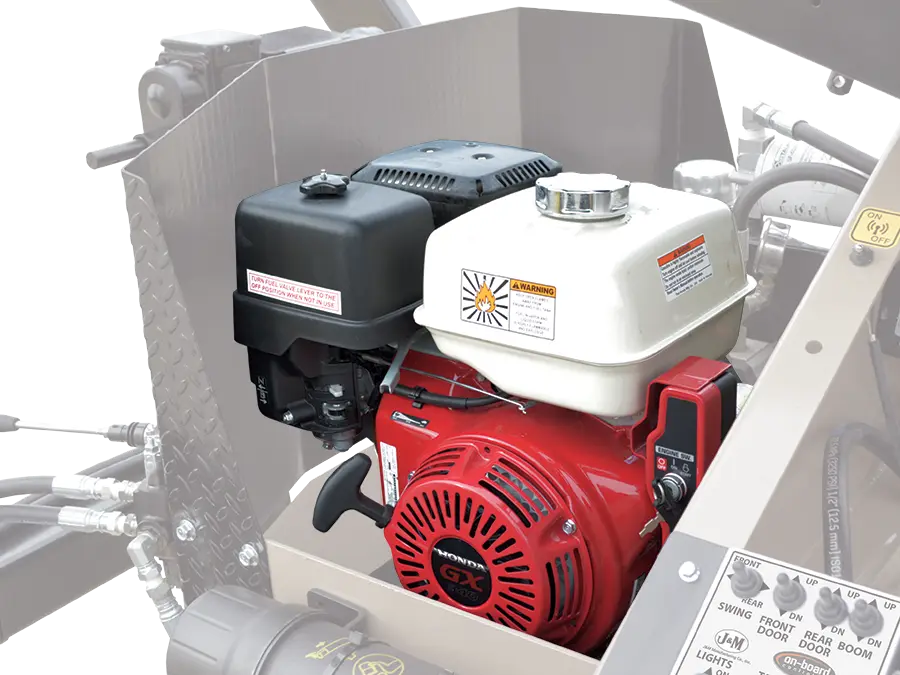

Convenient Open Engine Placement
13 h Engine
Powered by a dependable 13 hp motor, the SpeedTender Pro c4•50 features the engine in front of the tender for easy access. Whether it be changing the oil, filling the gas, or turning the engine on or off, the open placement makes operation and maintenance easy and convenient.

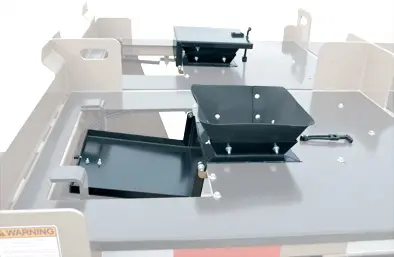

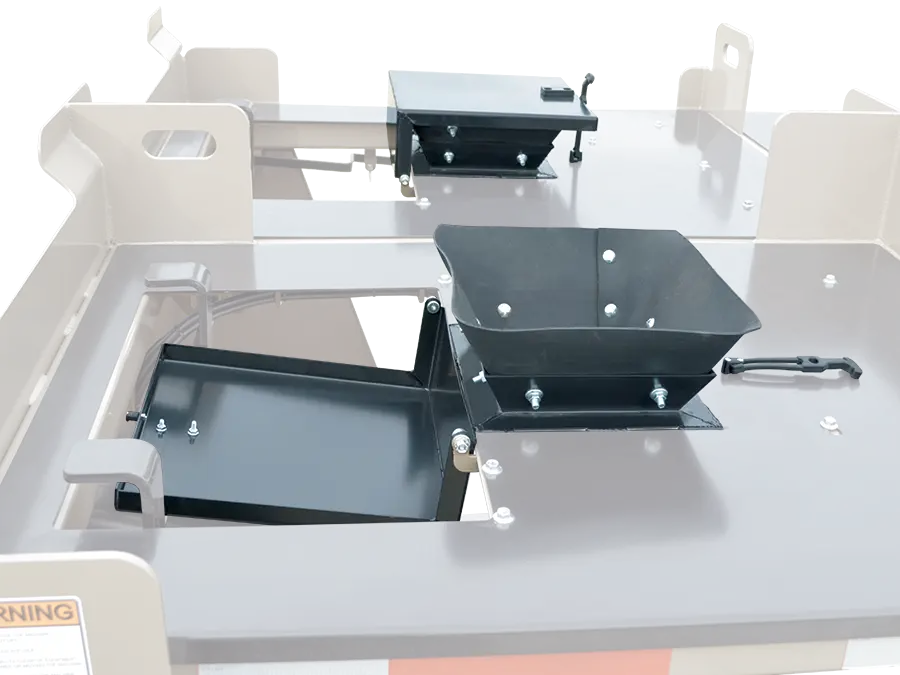

Metal Weather-Tight Lids
Weather-tight lids protect your chutes from moisture and debris. The attatched metal lids are easily secured in place with a rubber strap. Before loading the pro box, simply unfasten the rubber strap and fold the lid for easy storage.

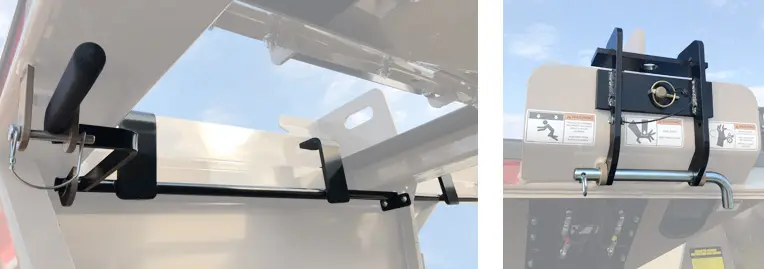

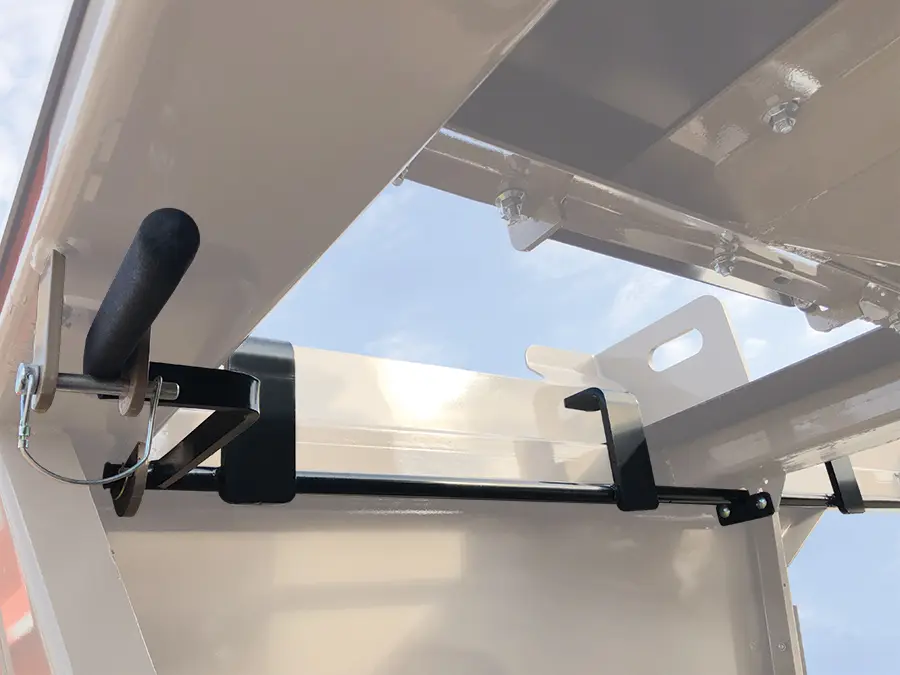

Locking Container Latches
Secure your container with easy-to-use locking latches.

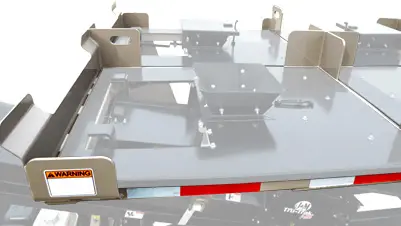

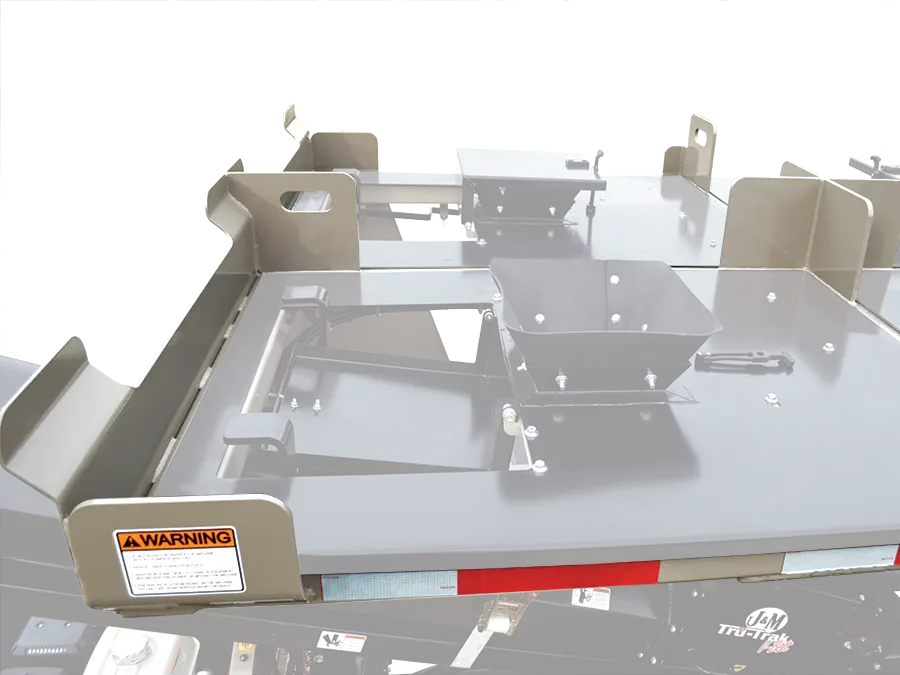

Guide Plates
Trouble-free guide plates ensure your containers are always centered for quick and easy replacement of seed boxes.

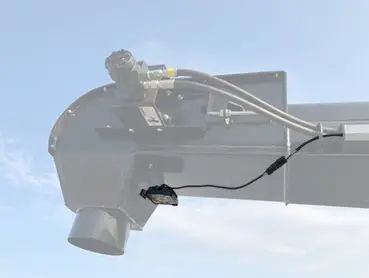

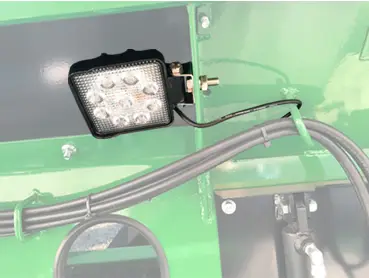

Working Lights
Two bright LED lights provide exceptional visibility during night time use.
Four Function Remote
Four function standard wired remote controls:
- Starts/Stops Conveyor
- Raises/Lowers Conveyor
- Opens/Closes Doors
- Swings Conveyor Side‐to‐Side
c4•50 Pro Box SpeedTenders™ Options
Precision Scale Systems
The most effective way to precisely distribute seed to your planter and ensure uniformity is with an advanced scale system. J&M's electronic scale systems offer an Avery Weigh-Tronix or Intercomp monitor with wireless controls and many options to fit your specific unloading needs.
Learn more about scale options
 Weigh‑TronixScale System |
 IntercompScale System |
|
|---|---|---|
| Wireless Remote | Optional | Standard |
| LCD Display | ||
| Remote Auto Dispense | 1 | |
| Auto Bin Tracking | ||
| Optional Printer | ||
| Optional XLR Display | ||
| 1Must be equipped with optional wireless remote. | ||
Scale Add-on Options
- Variable speed control options
- Optional speed control for Standard Remote
- Optional hydraulic flow valve to manually control conveyor speed
- Auto-Gate Shut Off Kit for predetermined weight
- Thermal Printer for Digi‑Star indicator
- XLR Series Remote Display
Luxury Controls
SpeedTender Pro c4•50 seed tenders include a 4-function wired remote and on-board controller to operate the conveyor, doors, and optional talc applicator. For more convenience, upgrade to a wireless remote. For a premium unloading experience, upgrade to the Intercomp system for a wireless remote and on-board controller that enables you to remotely control your conveyor speed, dispense talc, and wirelessly start or stop your engine.
 Standard Wired Remote |
 Optional Wireless Remote |
 IntercompWireless System |
|
|---|---|---|---|
| Starts/Stops Conveyor | |||
| Raises/Lowers Conveyor | |||
| Opens/Closes Tank Doors | |||
| Hydraulically Swings Conveyor | |||
| Electronic Scale Shut-Off | |||
| Remote Auto Dispense | |||
| Remote Conveyor Speed Control | |||
| Remote Talc Dispense | |||
| Wireless Engine Start/Stop | |||
| Opens/Closes Electric Roll Tarp | |||
| Auto Bin Tracking |
Patriotic Farmer Edition
To honor the patriotism of the American farmer, upgrade to the Patriotic Farmer Edition with an American flag stripe. A portion of the proceeds generated from the American flag decal will be donated to national nonprofit organizations that provide assistance to farm families who have experienced a major injury, illness or disaster, or mobilize veterans to transition them from military service to farming.
Learn more about Patriotic Farmer Edition seed tenders
Miscellaneous Options

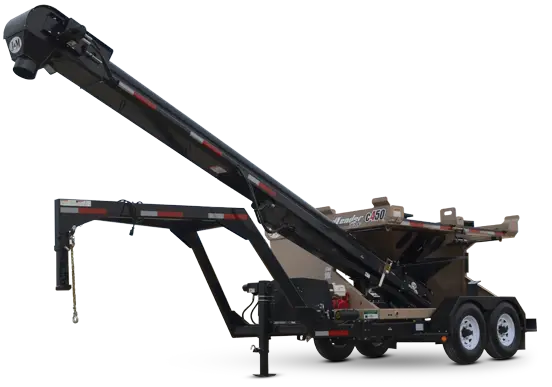

- Choice of durable red, green, blue, and tan urethane exterior finish
- Choose from A-frame, gooseneck, or trailer mount options to fit your towing vehicle
- Semi-hitch gooseneck mount with platform in place of standard gooseneck
- Aluminum wheels in place of standard wheels
- Raise or lower your SpeedTender without breaking a sweat using a hydraulic jack
- 11' telescoping spout
- Vinyl sock for end of telescoping spout
- Talc applicator
- 3" Pintle eye hitch in place of standard ball hitch
SpeedTender Pro c4·50 Specs and Dimensions
SPECIFICATIONS
 |
|
|---|---|
| Capacity | Four (4), 50 Unit Boxes |
| Weight (Empty) | 6,300 lbs |
| Tongue Weight (Loaded) | 1,650 lbs |
| Conveyor | 22" Length 8" Tube Conveyor |
| Conveyor Reach | 49' (Front to Rear Swing) |
| Unloading Rate | 30 bu/min |
| Axles | Two (2), 7,000lbs Torsion-Flex Axles |
| Electric Brakes | Yes |
| Engine | 13 hp Honda Motor with Electric Start | *Measured with soybeans at 140,000 seeds per unit weighing 45 lbs. |

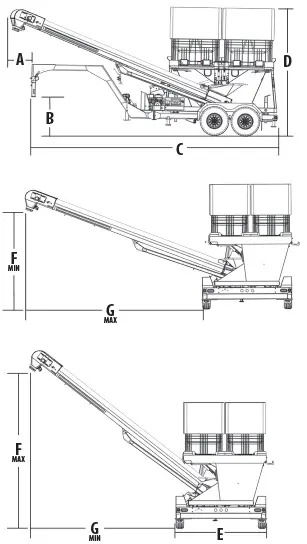

DIMENSIONS
| A-Frame | Gooseneck | Trailer Mount | |
|---|---|---|---|
| A | 4'-10" | 2'-10" | 12'-9" |
| B | 1'-6" (Minimum) 1'-10" (Maximum) |
2'-7" (Minimum) 3'-3" (Maximum) |
N/A |
| C | 20'-4" | 22'-6" | 12'-5" |
| D | 11'-3" | 11'-3" | 10'-8" |
| E | 8'-6" | 8'-6" | 8'-6" |
| F | 8'-7" (Minimum) 14'-2" (Maximum) |
8'-7" (Minimum) 14'-2" (Maximum) |
8'-7" (Minimum) 14'-2" (Maximum) |
| G | 13'-7" (Minimum) 16'-5" (Maximum) |
13'-7" (Minimum) 16'-5" (Maximum) |
13'-7" (Minimum) 16'-5" (Maximum) |
