LC SpeedTenders – Premium Bulk Seed Tenders
– Larger Capacity: LC Series SpeedTenders feature a larger capacity AND a lower overall height. This is accomplished by supporting the conveyor from above the tank with a patented support arm. Other seed tenders support the conveyor from below which decreases capacity and adds to the overall height.

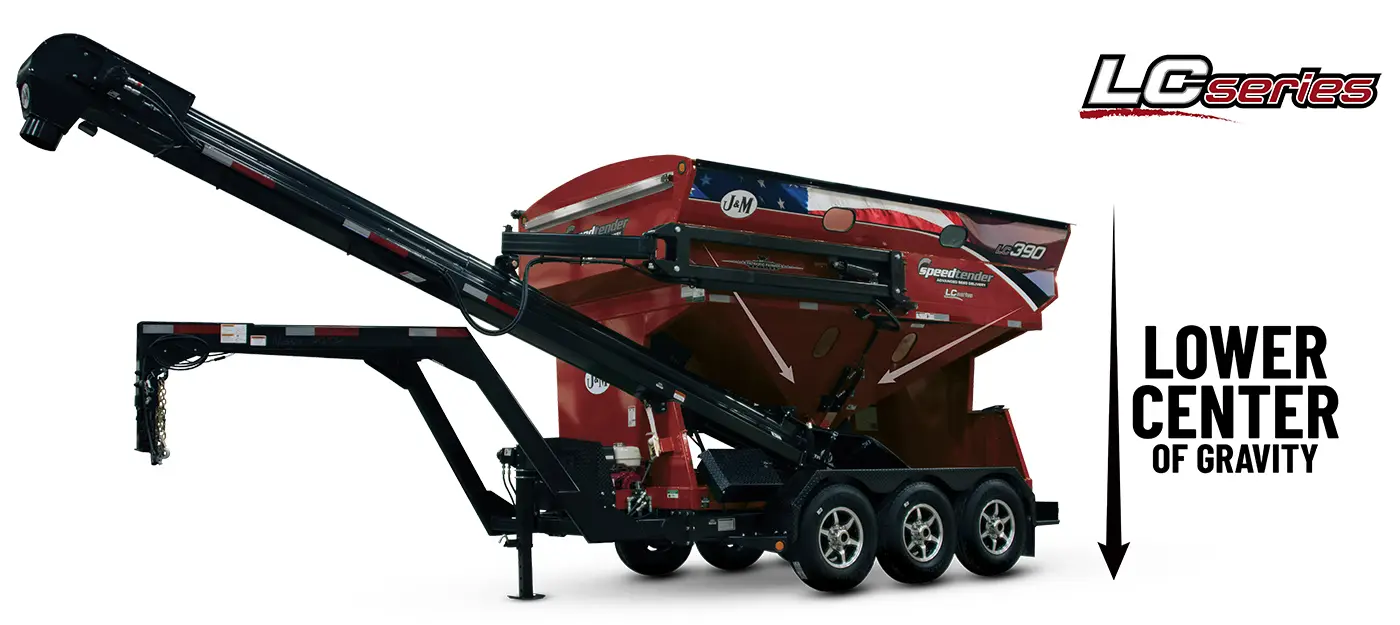

– Lower Center of Gravity: The lower overall height allows you to carry more seed with a lower center of gravity making it easier to fill and more stable while traveling over uneven terrain.

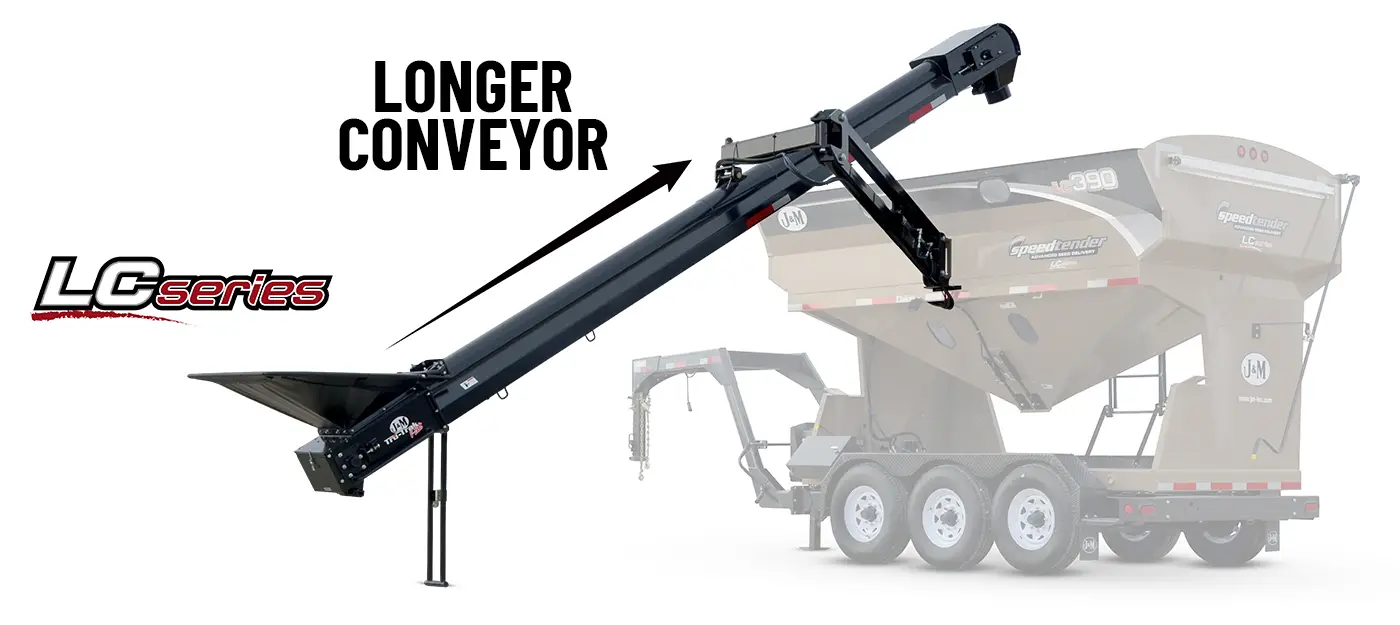

– Longer Conveyor: The extra long 22' conveyor with large diameter round tube belt design makes it easy to reach the tallest central fill and widest box row planters. The conveyor also rotates 180° for easy self-filling.
– Luxury Controls: Standard luxury controls on all J&M LC Series SpeedTenders allow the operator to easily place the conveyor into the unload or self-fill positions and gives greater flexibility when using the conveyor as a stand alone unit to unload adjacent gravity wagons.
Their Upgrades...Our Standards
Compare Apples to Apples
Seed Tenders should be designed to make your job easier and more efficient, saving you time and money during planting season. So why then do many manufacturers equip their standard tenders with bare bone features that will require a visit to your chiropractor? Do you really want to crank a winch to manually raise and lower the conveyor or swing the conveyor from side to side by hand? Doesn’t a smaller, slower auger with less unloading height and reach slow you down and make your job more difficult? Why have standard features that make your job more difficult?
J&M LC Series SpeedTenders are premium bulk seed tenders designed to make your planting season efficient and easy. That is why we've included many of the competitor's upgrades into our standard seed tender models. Don’t be fooled by competitor lower prices, as it’s probably not an "apples to apples" comparison.
| J&M's Standard LC SpeedTender | Competitor's Standard Self-Fill Tender |
|---|---|
| Self-Filling Design | Self-Filling Design |
| Extra Long 22' Conveyor | 18' Conveyor |
| 8" Round Tube Conveyor | 6" Round Tube Conveyor |
| 30 bu/min | 18 bu/min |
| Patented Tru-Trak V-Belt | Cleated Belt |
| Standard 4 Function Wired Remote | Standard 2 Function Wired Remote |

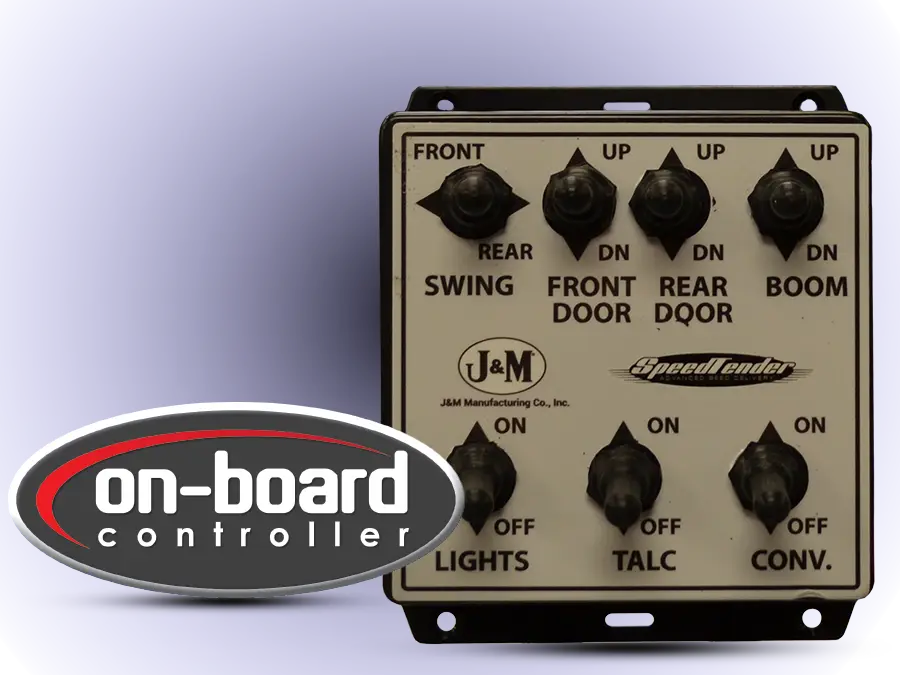

| Standard On-Board Controller | Not Offered |
| 13 hp Electric Start Engine | 11 hp Electric Start Engine 9.5 hp Electric Start Engine |
Patented V-Belt Conveyor
Reduces Seed Damage and Maintenance
The unique conveyor design features a patented V-guided belt that is positioned in a recessed portion of the end rollers to ensure the belt remains centered, reducing the need for adjustment and minimizing the chance of seed damage, premature wear and added maintenance expense. Because the Tru-Trak belt consistently stays in alignment, the skirting at the top of the conveyor can be designed with a more precise fit that reduces the potential for seed damage and collecting debris in the clean-out area.

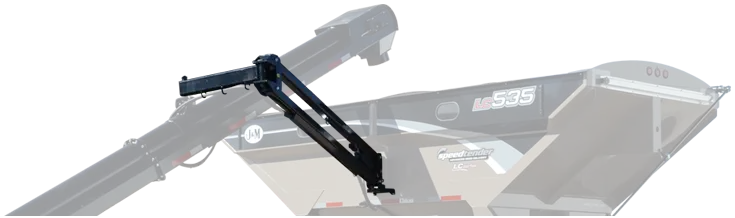

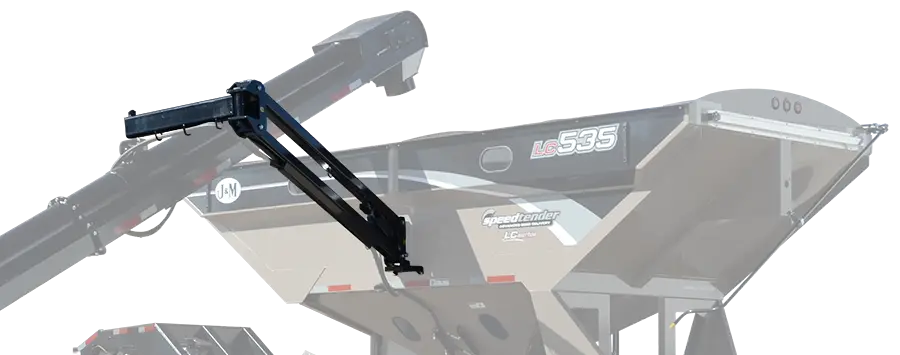

Patented Support Arm
The patented design supports the conveyor from the top, providing better balance and making it easier for one person to rotate from the unload to self-fill positions. Supporting the conveyor from the top rather than underneath also allows the tank to be designed with a lower center of gravity for greater stability during transport.
More Features
Miscellaneous Features
- 13 hp electric start engine
- LED work lights for night time unloading
- Divided hopper for quick and easy variety changes
Options

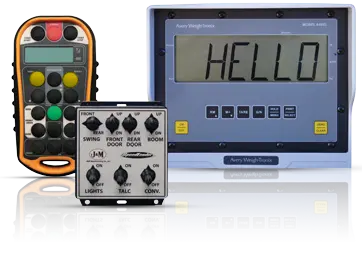

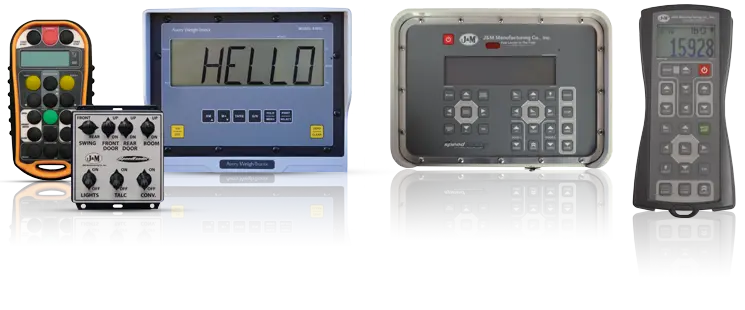

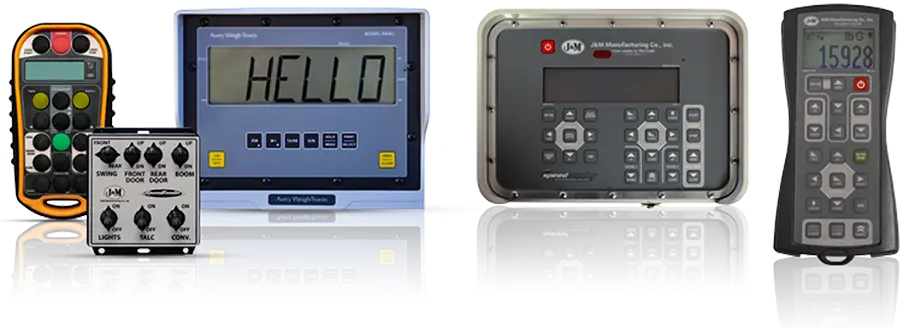

Precision Scale System

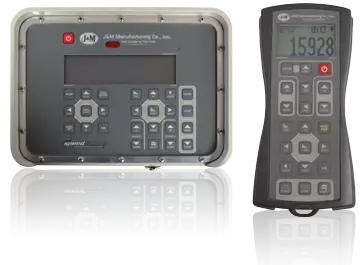

The most effective way to precisely distribute seed to your planter and ensure uniformity is with an advanced scale system. J&M's electronic scale systems offer an Avery Weigh-Tronix or Intercomp monitor with wireless controls and many options to fit your specific unloading needs.

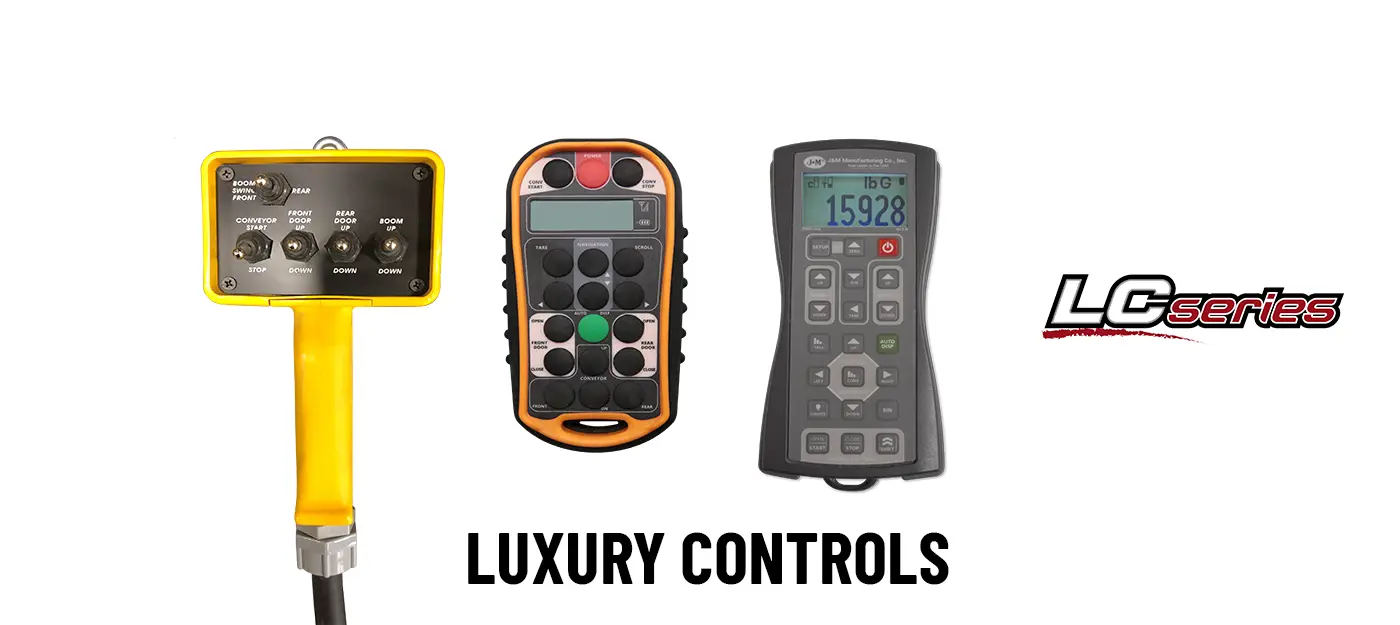

Luxury Controls

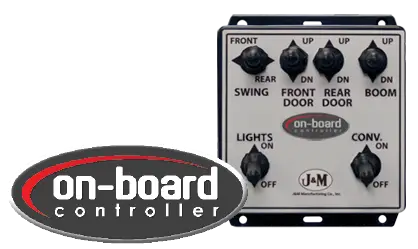

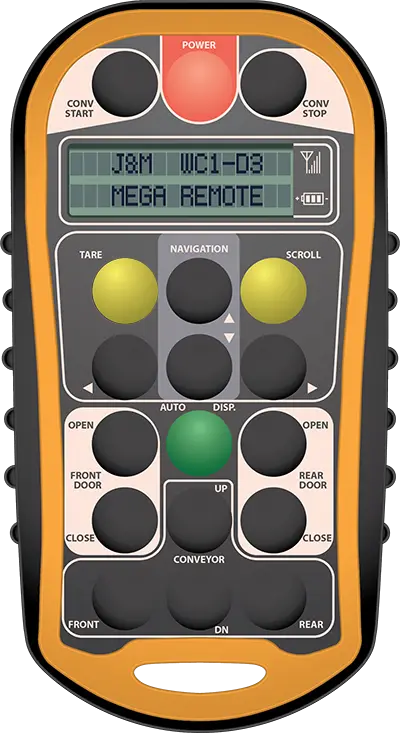

A standard four-function wired remote with On-Board controller is standard on all LC SpeedTenders. For additional operator convenience, upgrade to a deluxe wireless remote. Upgrade to an Intercomp scale system for a wireless remote that offers the most features.

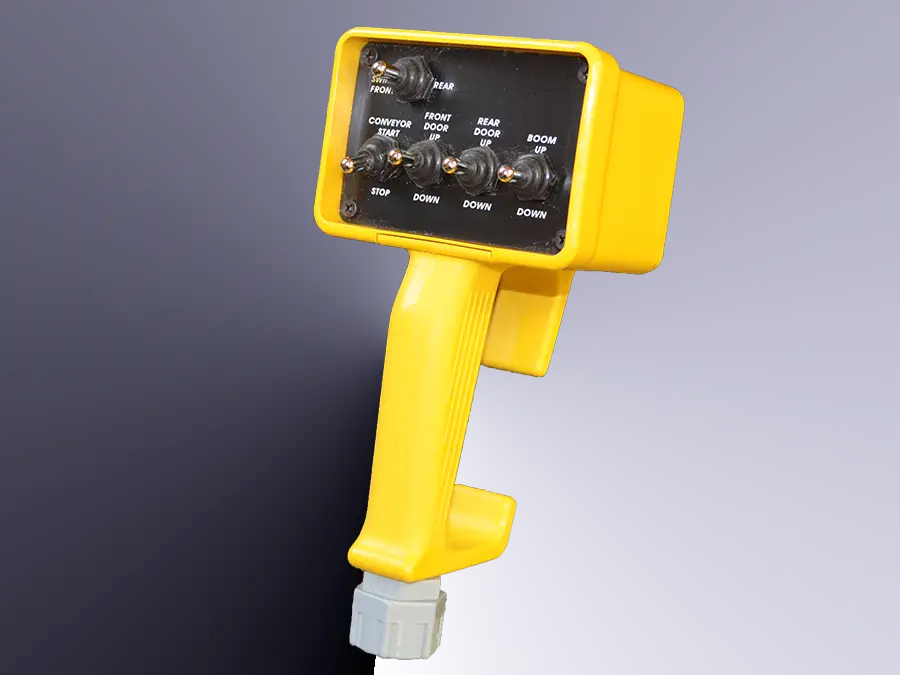

Standard Wired Remote |
Optional Wireless Remote |
Intercomp Wireless System |
|
|---|---|---|---|
| Starts/Stops Conveyor | |||
| Raises/Lowers Conveyor | |||
| Opens/Closes Tank Doors | |||
| Hydraulically Swings Conveyor | |||
| Remote Scale Shut-Off | 1 | ||
| Remote Auto Dispense | 1 | ||
| Remote Conveyor Speed Control | 2 | ||
| Remote Talc Dispense | |||
| Wireless Engine Start/Stop | |||
| Opens/Closes Electric Roll Tarp | |||
| Auto Bin Tracking | |||
| 1Must be equipped with Weigh-Tronix scale system. 2Optional conveyor speed control adjustment located on conveyor. |
|||

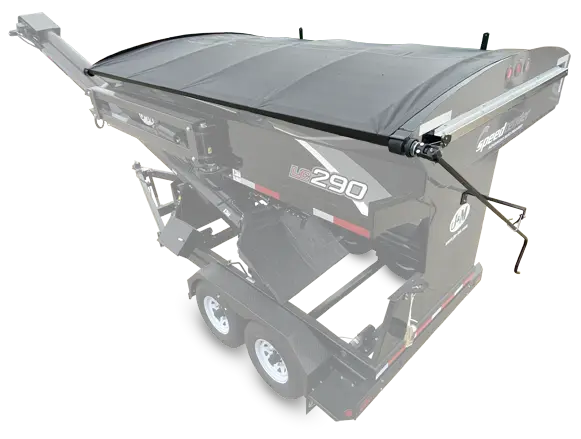

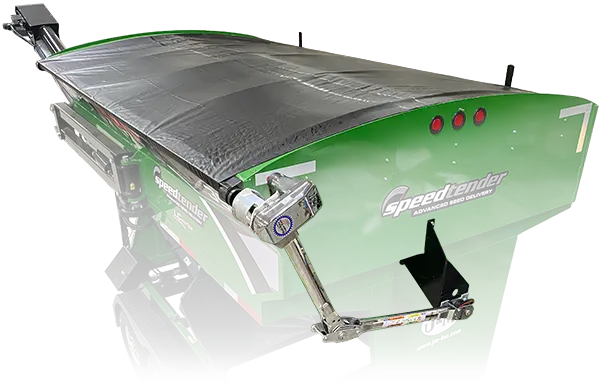

Electric Roll Tarp

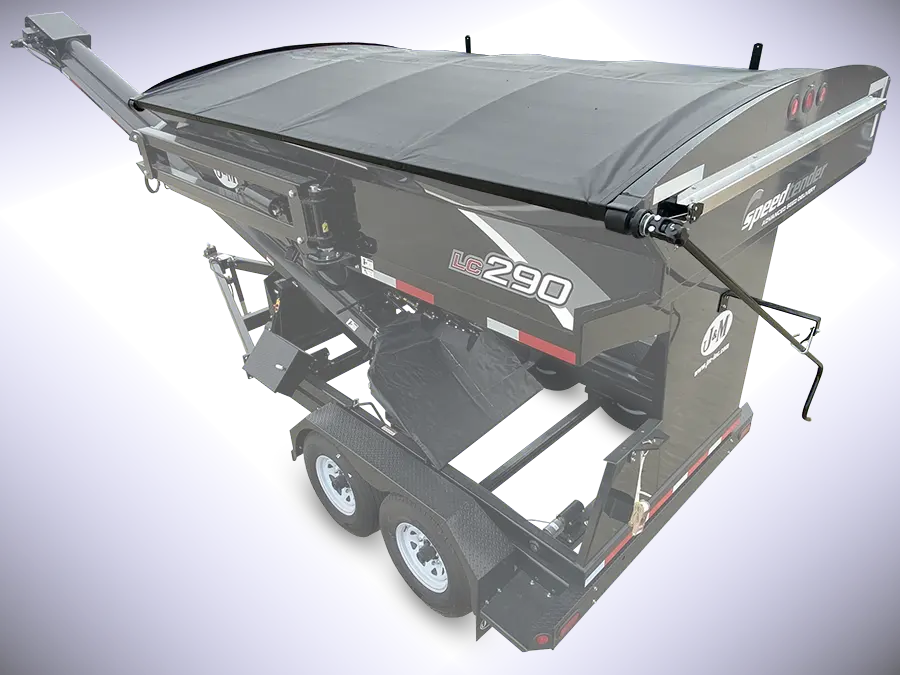

Upgrade your Glide Right Roll Tarp System with an electric control that can be operated manually at the base of the tender. Units with an Intercomp scale and wireless remote can control the electric roll tarp through the Intercomp handheld remote.
Patriotic Farmer Edition
To honor the patriotism of the American farmer, upgrade to the Patriotic Farmer Edition with an American flag stripe. A portion of the proceeds generated from the American flag decal will be donated to national nonprofit organizations that provide assistance to farm families who have experienced a major injury, illness or disaster, or mobilize veterans to transition them from military service to farming.
Miscellaneous Options

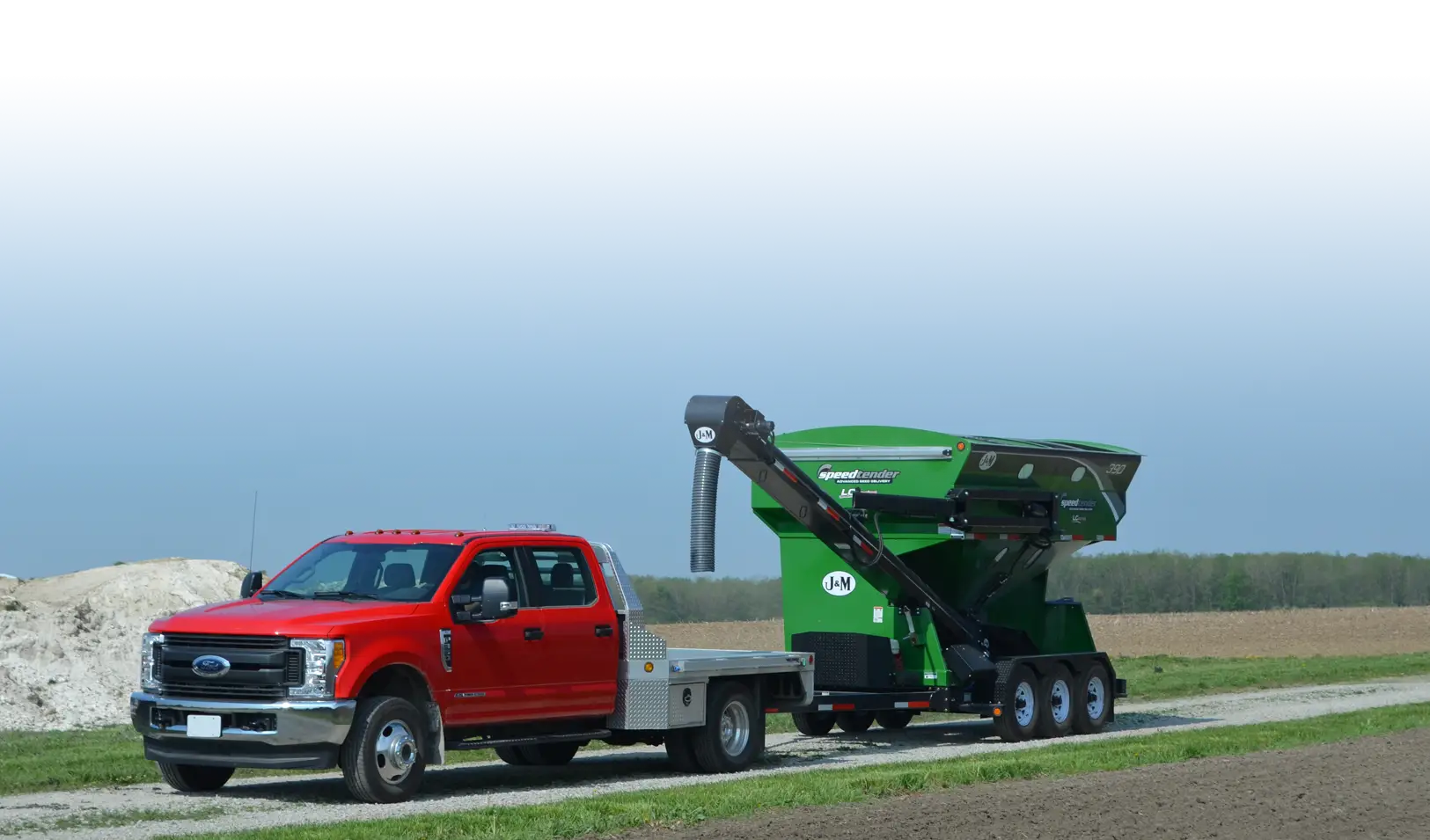

- Choose from A-frame, gooseneck, or trailer mount options to fit your towing vehicle
- Semi-hitch gooseneck mount with platform in place of standard gooseneck
- Aluminum wheels in place of standard wheels
- Hydraulic jack
- 11' telescoping spout
- Vinyl sock for end of telescoping spout
- Talc applicator

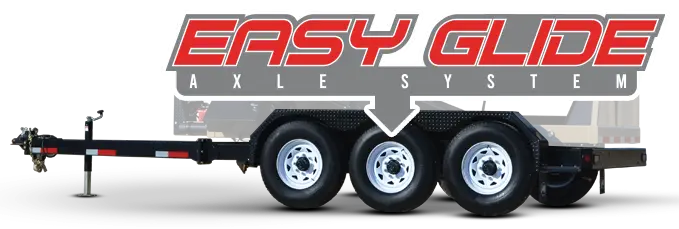

- LC 390 with two heavy-duty 10,000 lb axles instead of three 7,000 lb axles for greater maneuverability and easier towing
- 3" Pintle eye hitch in place of standard ball hitch
LC Series SpeedTender Specs and Dimensions
| Model LC 290 | Model LC 390 | Model LC 535 | |
|---|---|---|---|
| Capacity | 290 Seed Units 290 Cubic Feet |
390 Seed Units 390 Cubic Feet |
535 Seed Units 535 Cubic Feet |
| Weight (Empty) | 6,100 lbs | 7,500 lbs | 11,000 lbs |
| Tongue Weight (Loaded) | 1,650 lbs 1,207 lbs (Gooseneck) |
1,380 lbs 1,453 lbs (Gooseneck) |
4,900 lbs |
| Conveyor | 22' Long 8" Tube Conveyor |
22' Long 8" Tube Conveyor |
25' Long 10" Tube Conveyor |
| Unload Rate | 30 bu/min | 30 bu/min | 45 bu/min |
| Conveyor Reach (with telescoping spout) |
49' (front to rear swing) | 49' (front to rear swing) | 50' (front to rear swing) |
| Axles | Two (2) 7,000 lb Torsion-Flex Axles | Three (3) 7,000 lb Torsion-Flex Axles or Two (2) 10,000 lb Torsion-Flex Axles |
Two (2) 16,000 lb Dual Wheel, Spring Ride Axles |
| Electric Brakes | Yes | Yes | Yes |
| Engine | 13 hp Electric Start | 13 hp Electric Start | 13 hp Electric Start | Measured with soybeans at 140,000 seeds per unit weighing 45 lbs. |

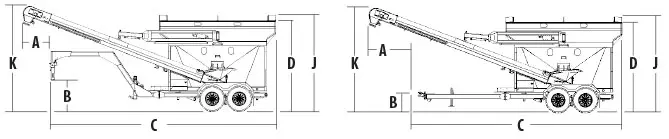

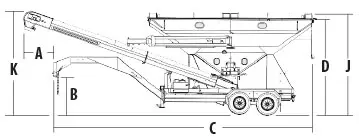

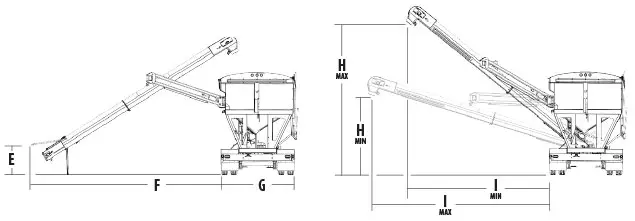

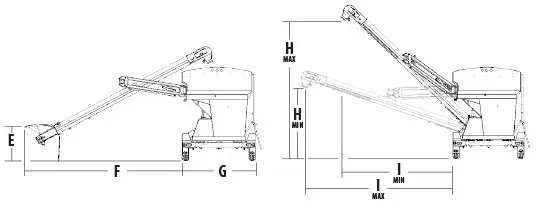

Dimensions
Download Trailer Mount Dimensions
| LC 290 A–frame |
LC 290 Gooseneck |
LC 390 A–frame |
LC 390 Gooseneck |
LC 535 Gooseneck |
|
|---|---|---|---|---|---|
| A | 5'–1" | 2'–10" | 4'–9" | 2'–8" | 3'–6" |
| B | 1'–6" min 1'–10" max |
1'–6" min 1'–10" max |
2'–7" min 3'–3" max |
2'–7" min 3'–3" max |
2'–9" min 3'–4" max |
| C | 21'–3" | 23'–5" | 22'–1" | 24'–4" | 29'–2" |
| D | 9'–3" | 9'–3" | 9'–8" | 9'–8" | 10'–8" |
| E | 3'–10" | 3'–10" | 3'–10" | 3'–10" | 4'–0" |
| F | 17'–11" | 17'–11" | 17'–11" | 17'–11" | 20'–2" |
| G | 8'–6" | 8'–6" | 8'–6" | 8'–6" | 8'–6" |
| H | 8'–7" min 16'–4" max |
8'–7" min 16'–4" max |
8'–7" min 16'–4" max |
8'–7" min 16'–4" max |
8'–7" min 17'–0" max |
| I | 12'–10" min 17'–4" max |
12'–10" min 17'–4" max |
12'–10" min 17'–4" max |
12'–10" min 17'–4" max |
16'–2" min 20'–4" max |
| J | 9'–9" | 9'–9" | 10'–2" | 10'–2" | 11'–5" |
| K | 11'–0" | 11'–0" | 11'–0" | 11'–0" | 11'–0" |
