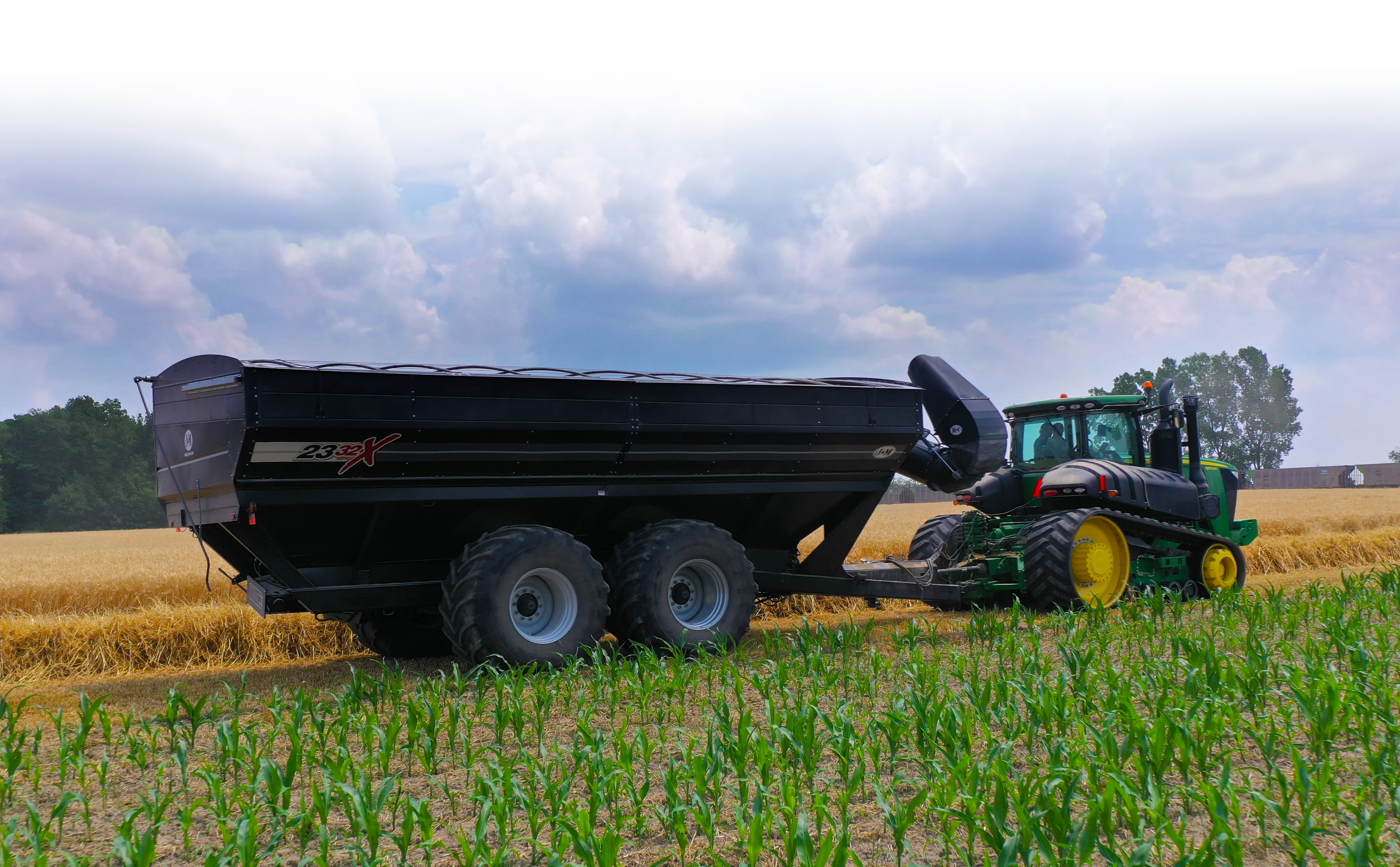

Hydraulic Suspension In-line Tandem Axles

Boost your yield potential with J&M’s In-Line Tandem Axles. Featuring hydraulic suspension, our innovative design delivers double the footprint of single tires for superior field flotation and reduced compaction—at a lower cost than traditional track systems. Plus, enjoy unmatched road stability and smoother transport.

Available on these grain cart models:

• 1732 — 900 or 1050 tires
• 2032 — 900 or 1050 tires

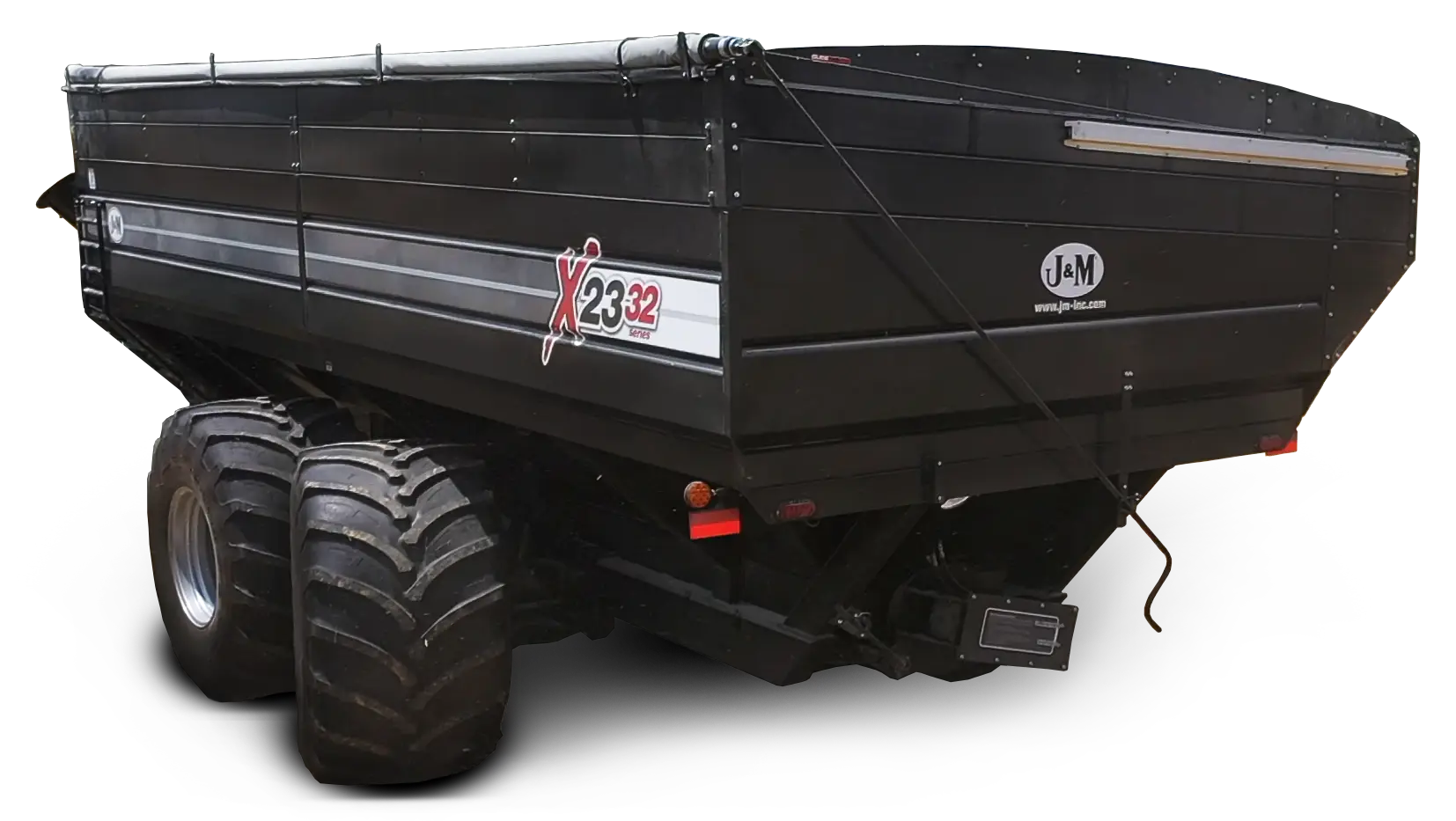

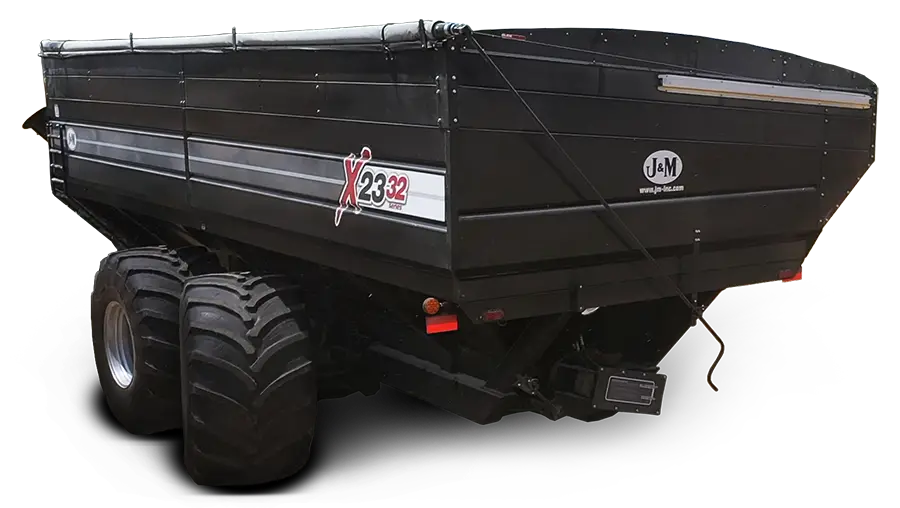

• 2332 — 1050 tires

1050 Tire Ground Pressure Values:

• 1732 — 19.9 psi
• 2032 — 22.7 psi
• 2332 — 25.6 psi

900 Tire Ground Pressure Values:

• 1732 — 23.4 psi
• 2032 — 26.8 psi

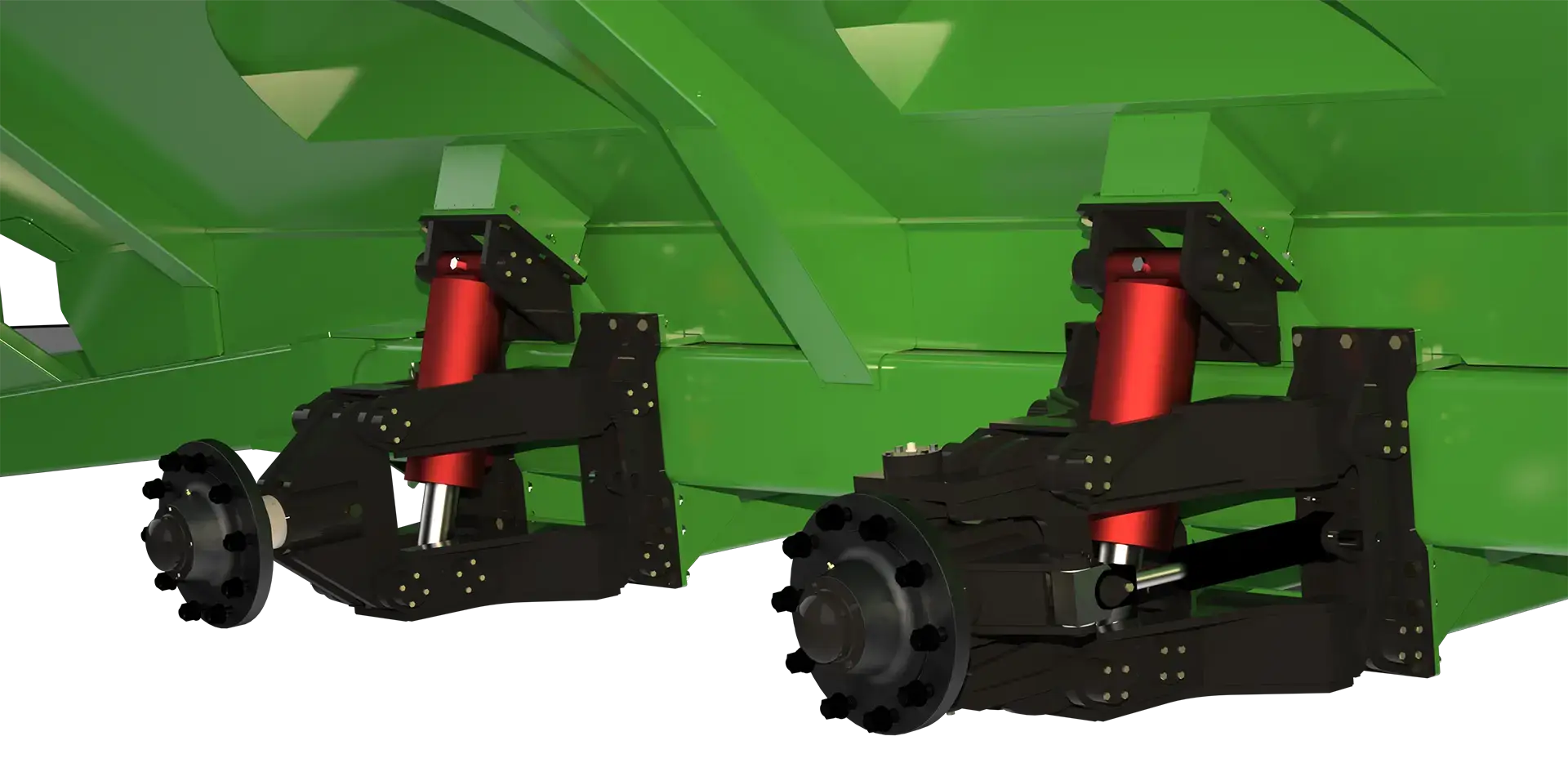

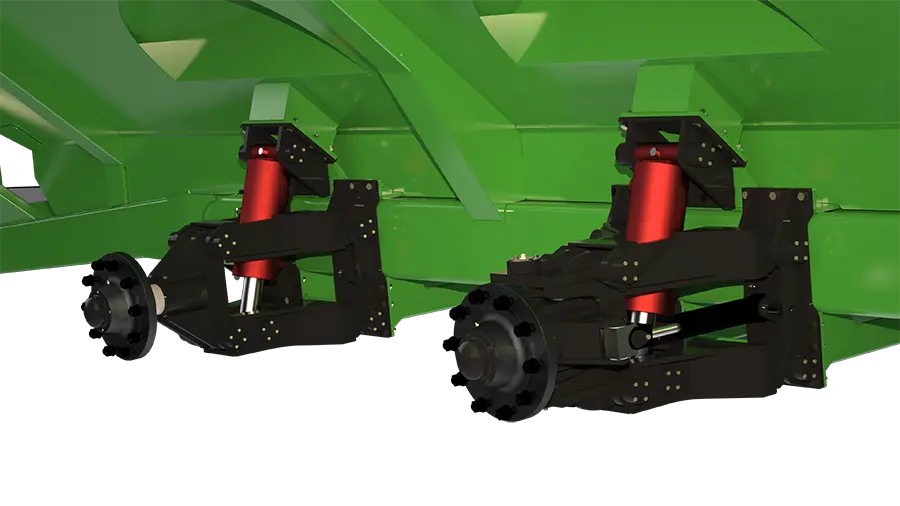

Hydraulic Suspension

Smooth ride

With 16 inches of travel, the hydraulic suspension offers a smooth ride in the field. The auto-leveling feature compensates for gradual hydraulic oil leakage through the seals and valves. If left alone, this will affect ride height and decrease the wheel travel while going over rough terrain. The J&M design automatically monitors the A-arm positions and adjusts the system accordingly. Competitors' carts require operators to manually add oil and measure cylinder stroke with a tape measure.

Reduced Maintenance

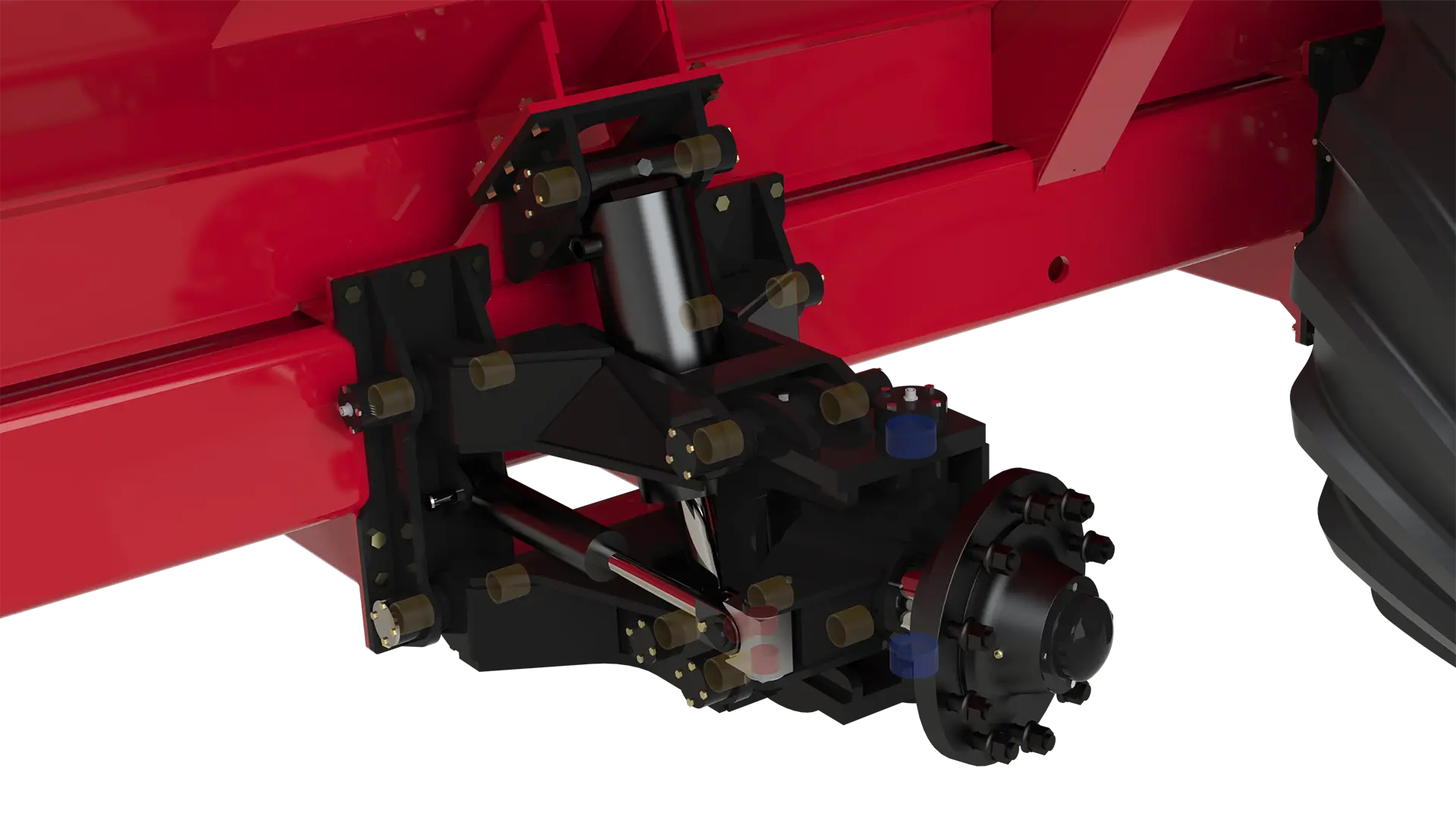

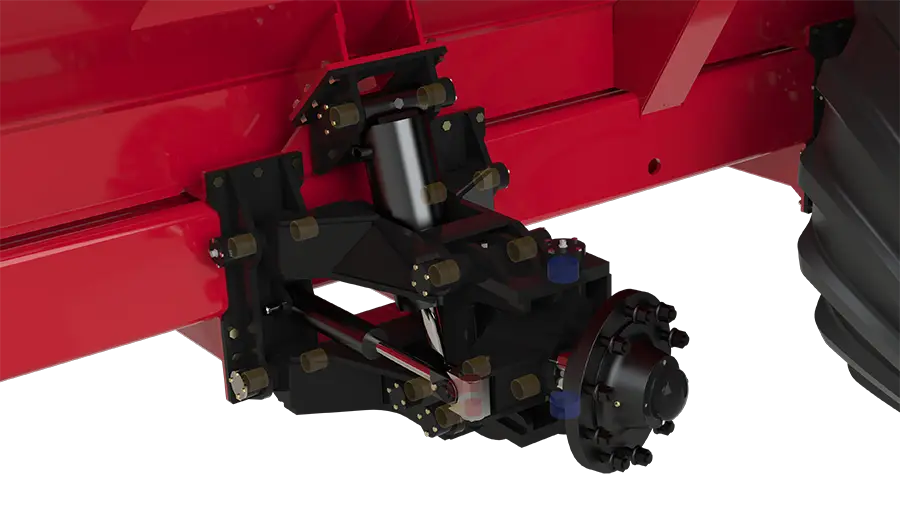

Greaseless Bushings

The use of greaseless poly bushings significantly cuts down on daily maintenance saving time and labor.

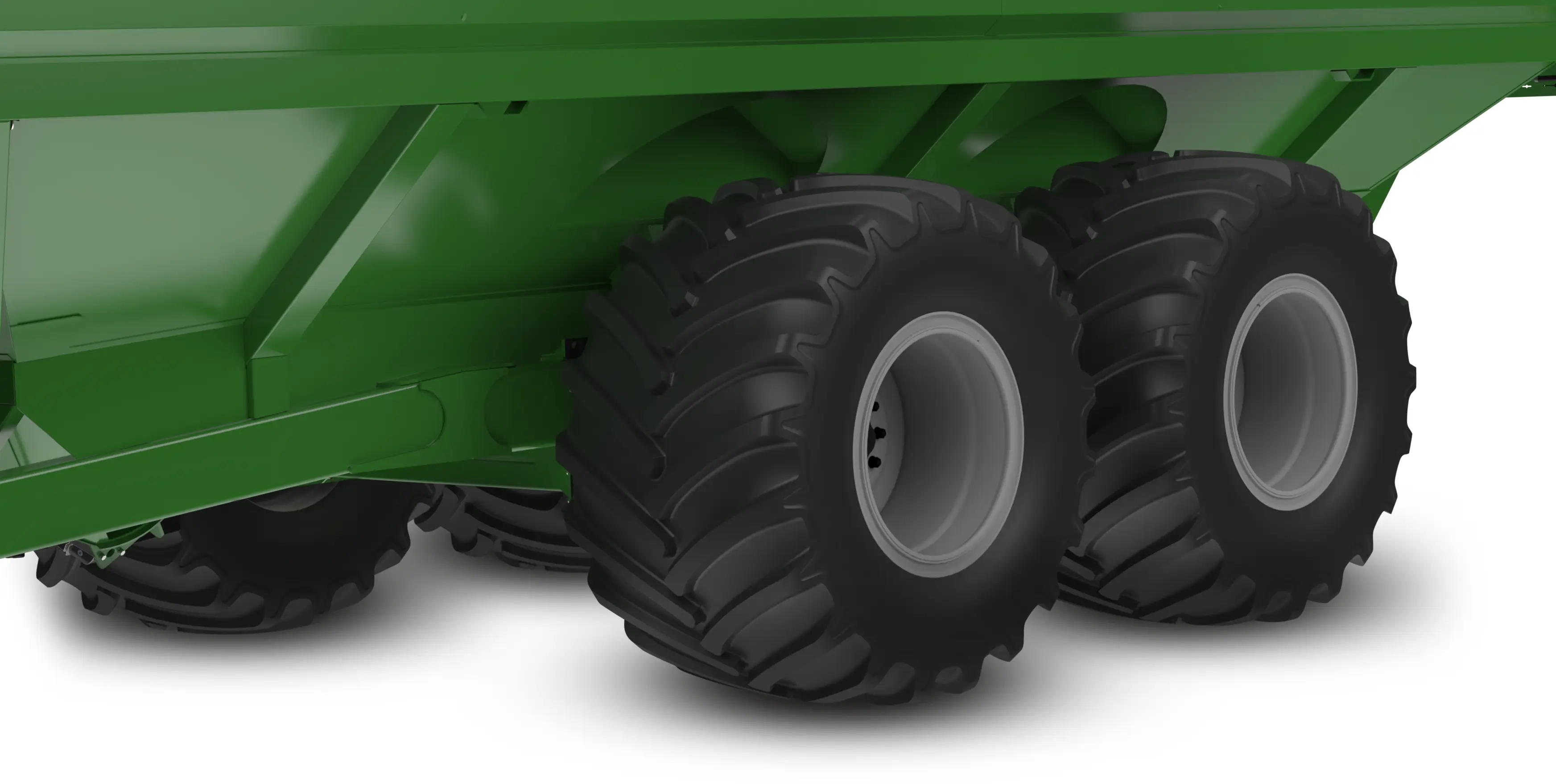

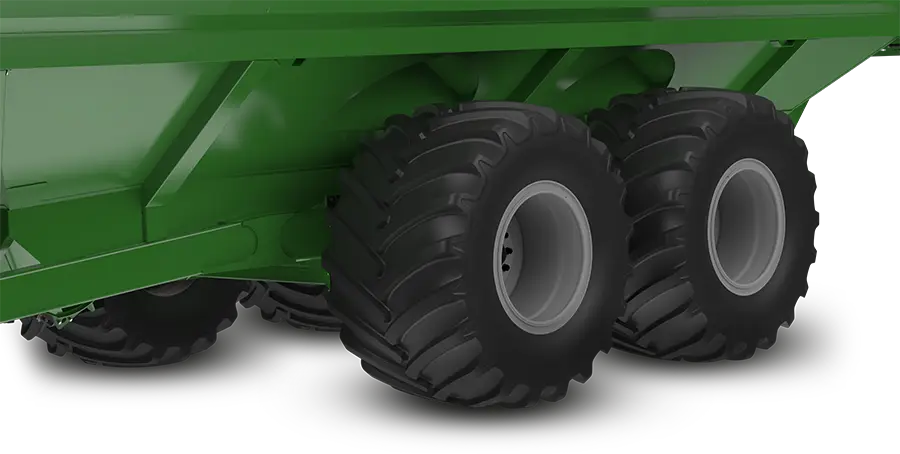

Superior Roadability

Road Travel

In-line tandem axles are generally better suited for road travel than tracks, providing the potential for faster transport from farm to farm, especially over long distances.

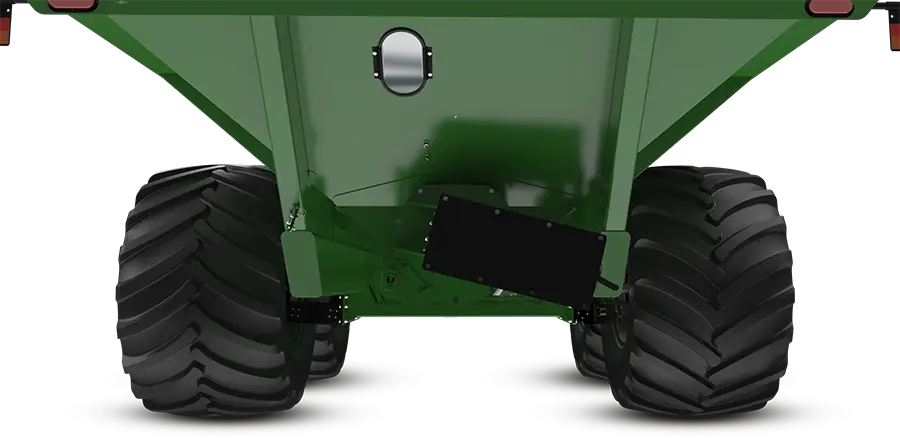

Enhanced Stability

Wide Wheelbase

The wide wheelbase provides greater stability on uneven terrain, reducing the risk of rollovers.

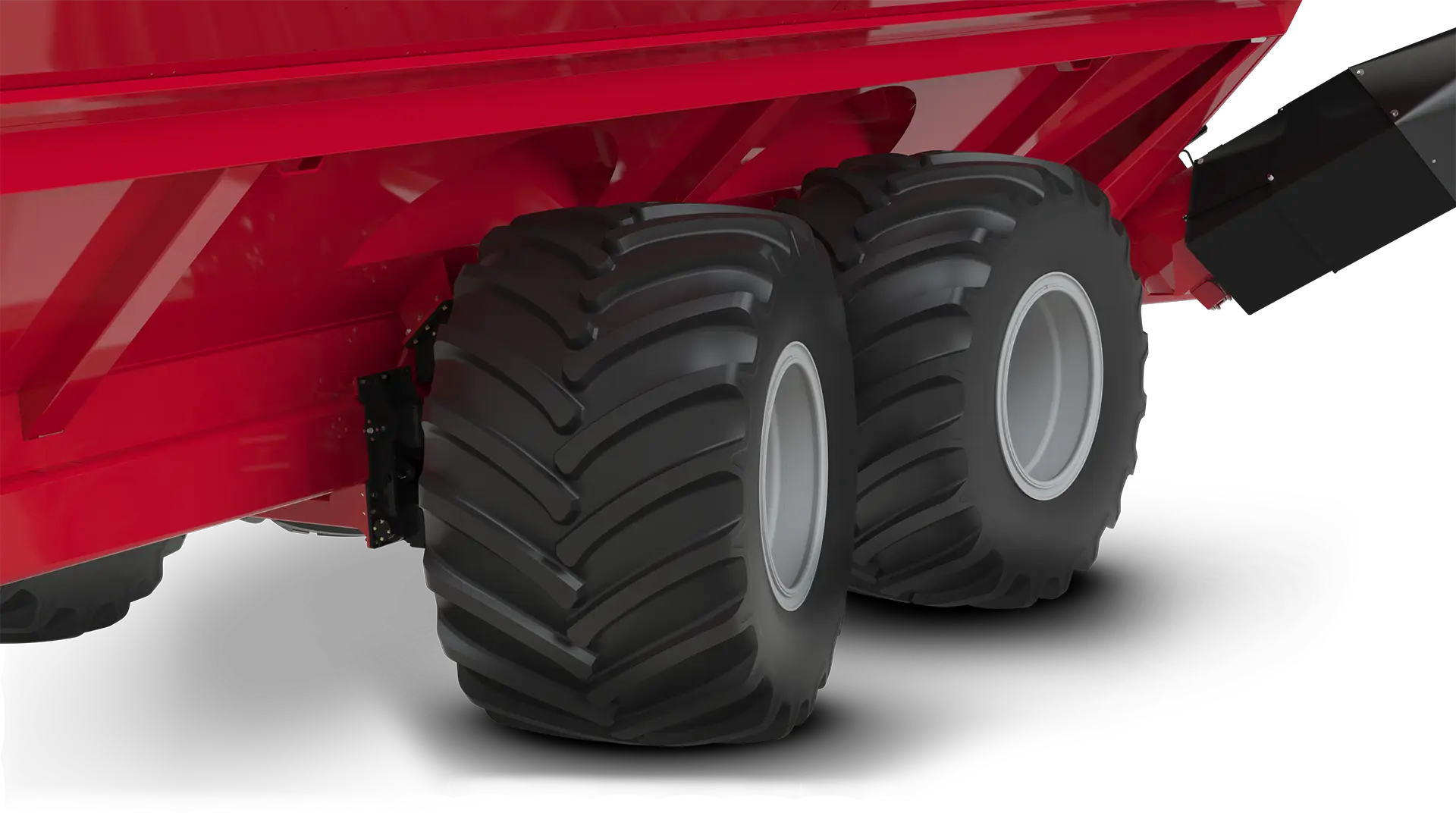

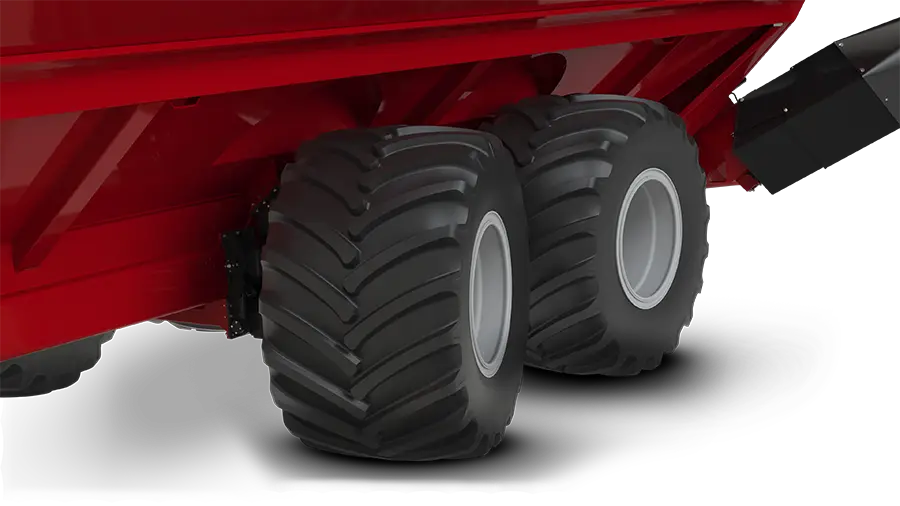

Bi-directional Steering

Easy to Use

Being able to steer in forward and reverse makes the grain cart much easier to maneuver in tight spaces, especially when in reverse. Competitor axles can only be steered while moving forward.
