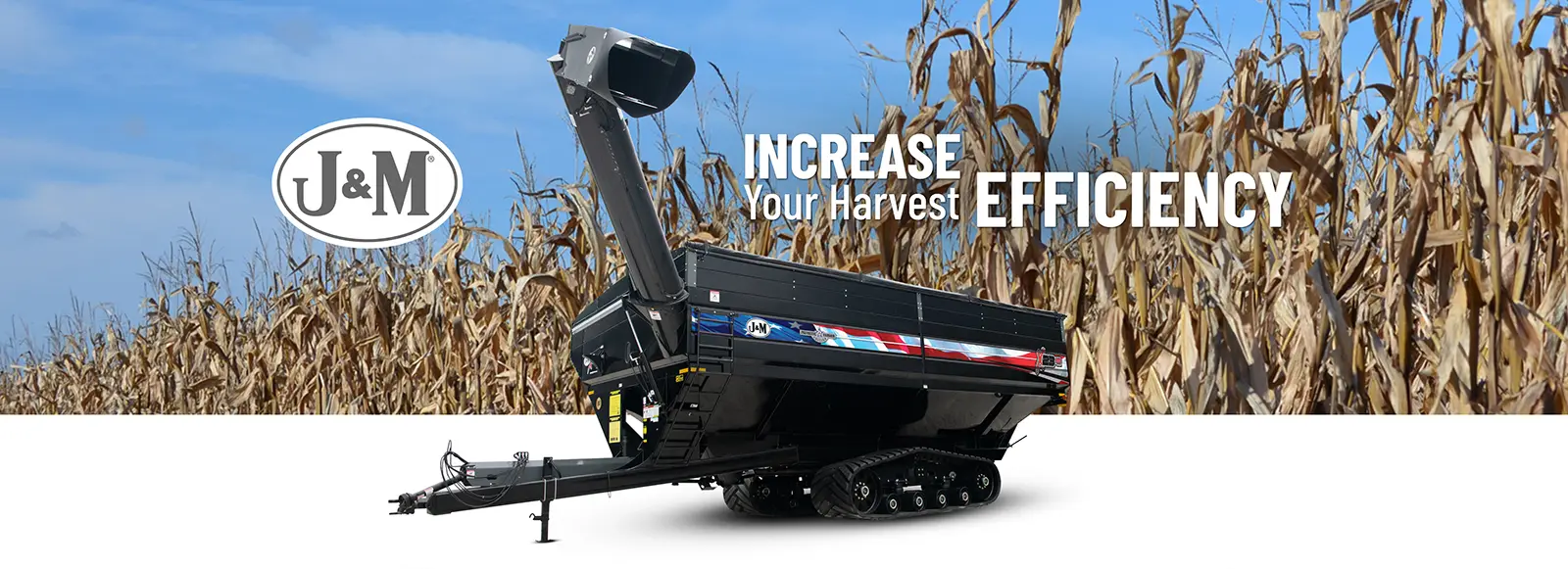

32 Series Dual Auger X‑Tended Reach Grain Carts
Dual Auger Carts with the Advantages of a Single Auger Cart
J&M's 32 Series Dual Auger X‑Tended Reach Grain Carts take dual auger designs to the next level by combining all the advantages of a single auger front folding design with the low profile of a dual auger grain cart. The upper auger utilizes a three‑position upper auger design. The "Storage Position" keeps the upper auger within the footprint of the tires/tracks for narrow storage and transport. The "Field Position" keeps stress off the auger hinge during field operations and keeps the spout out of the mud and dirt. The "Unload Position" extends out to give the grain cart operator maximum upward, outward and forward reach during unloads. The X‑Tended Reach design provides greater upward, outward and forward reach for superior operator visibility and reduced fatigue.

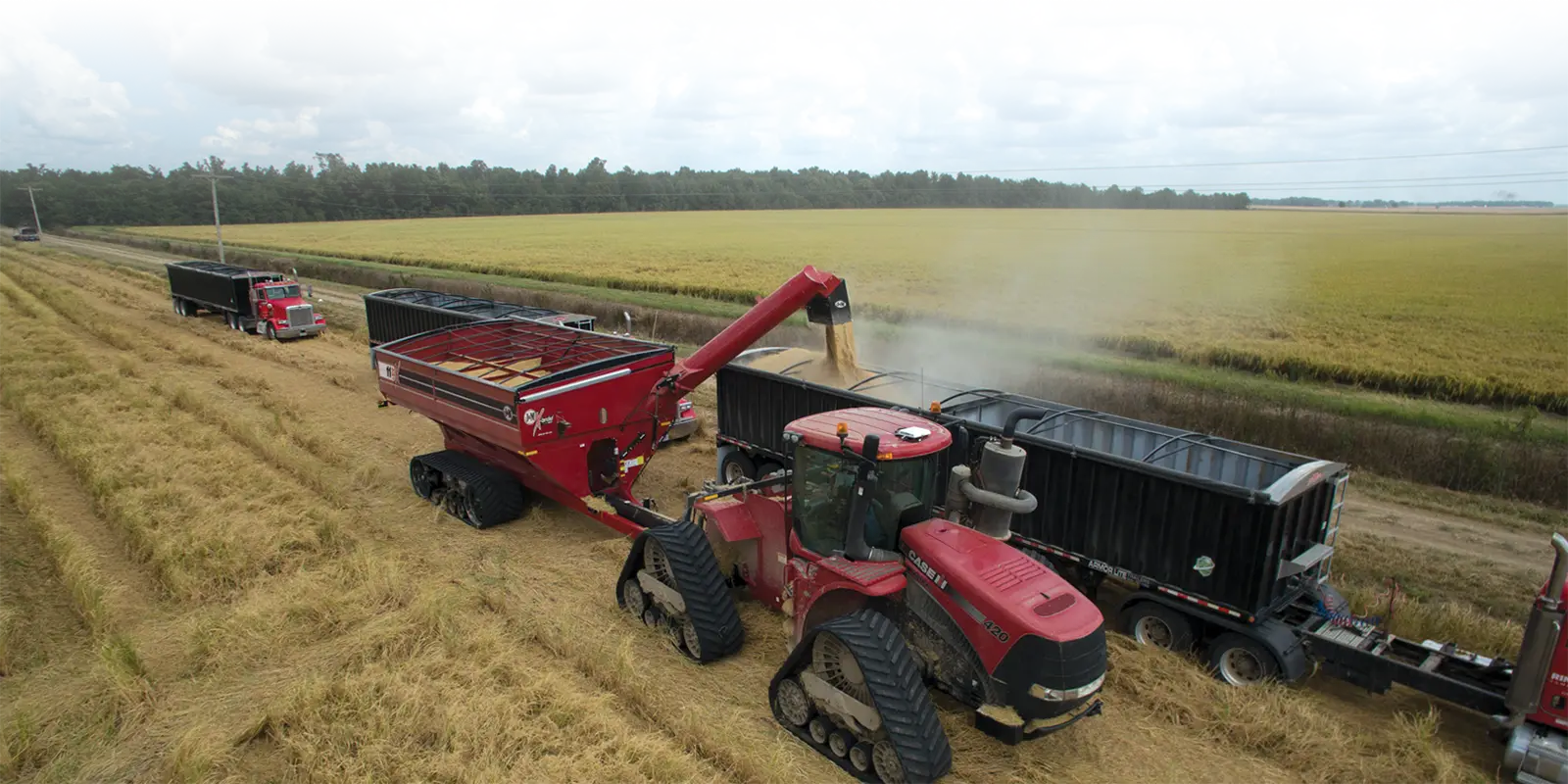

The patented hydraulic flow control spout on the 32 Series Dual Auger X-Tended Reach Grain Cart allows the operator to precisely place grain across the trailer. The Side‑Shooter design positions the spout perpendicular to the trailer so all four corners can be easily filled! The telescoping spout features a three‑part design that extends outward for maximum side reach and retracts when in the downward position to maintain maximum unloading height. Each of the three sections can be easily removed or added to offer multiple combinations of height and reach to fit your particular unloading need. The patented telescoping Side‑Shooter Flow Control Spout allows for precision placement of the grain while unloading, reducing the chance of spilling and ensuring an easy and complete fill of the trailer every time.

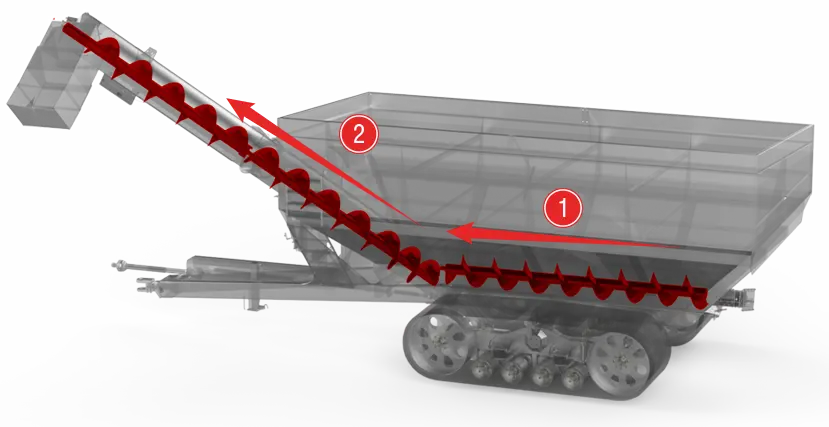

Smooth Transition
Less Maintenance...More Dependable

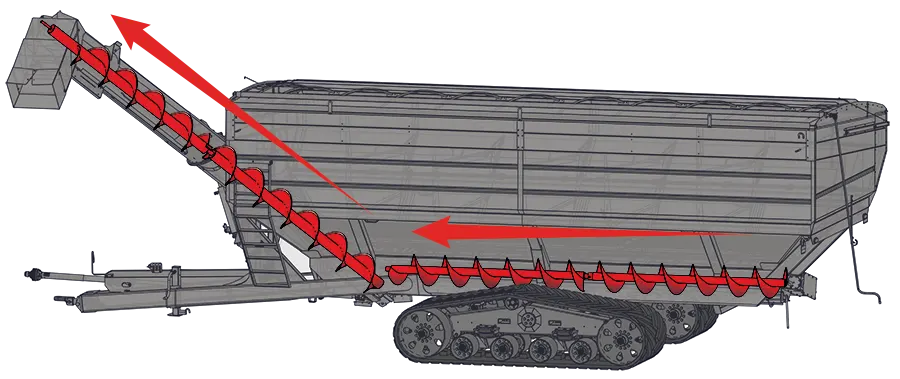

Many competitor dual auger grain carts move grain from the tank to the unload auger in three directions. First, the grain is moved horizontally across the floor of the tank. Second, the grain is dropped downward into a sump. Third, the grain is severely redirected into the unload auger. This increases the potential to damage grain and decreases unloading efficiency.
However, J&M's dual auger design places the vertical unloading auger inside the tank and at the base of the horizontal auger, eliminating the need for a sump. Because the unloading auger extends towards the tractor cab, not at a perpendicular angle towards the side, the redirection and damaging of grain is minimized and the unloading process is more efficient.
Low Profile
Easier to reach, More to see

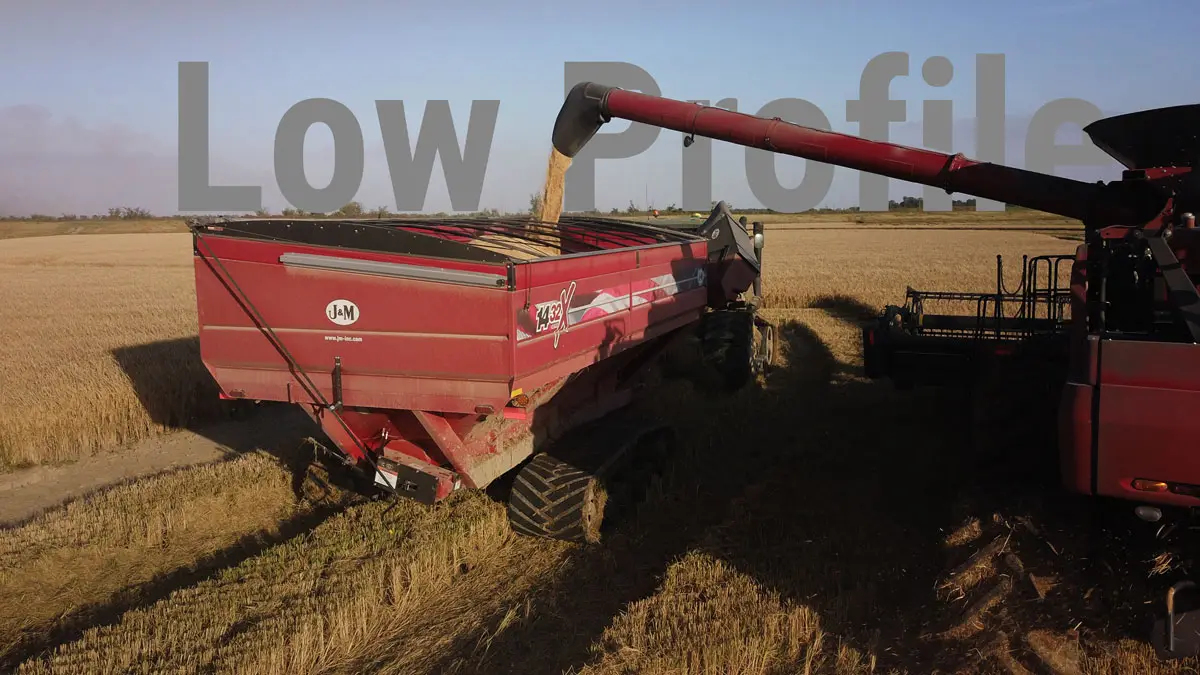

J&M's 32 Series X‑Tended Reach Dual Auger Grain Cart offers the lowest profile on the market. The combine side height, depending on your model will range from 9'9" to 11'3", providing maximum clearance for the combine auger and a lower center of gravity for added stability over uneven terrain.
Direct Drive Design
Less Maintenance...More Dependable

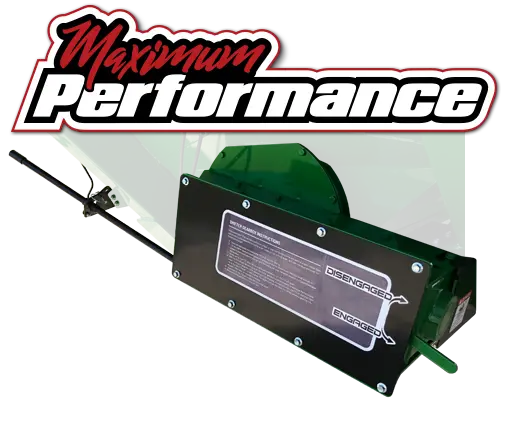

Typical dual auger grain carts utilize costly belts, sprockets or pulleys that cause problems and increase maintenance expense. The 32 Series Dual Auger X-Tended Reach Grain Cart features a powerful direct drive design with dual gearboxes to maximize unload efficiency and performance, year after year.
Standard Features
V-Truss Axle
Added Strength Prevents Twisting or Bending
Competitor grain cart axles feature small tubular steel that is prone to bending or I-beam designs that are prone to twisting, which puts premature stress on the rest of the cart. J&M’s exclusive V-Truss axles are engineered using heavy-duty tubular steel with a reinforced V-Truss design to resist both bending and twisting, protecting the cart from premature wear and tear. Standard on all single wheel carts.

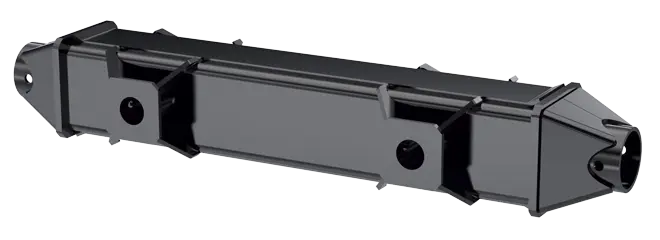

Heavy-Duty Tube Axle
Maximum Shear and Bending Strength
The axle for track carts is constructed with 12"×12"×½" (36" track) or 12"×12"×⅝"(46" track) thick tubing for maximum shear and bending strength, capable of withstanding the heaviest loads under the most extreme conditions.
Heavy-Duty Components
J&M grain carts use only the highest quality, heavy-duty components to keep you on the go, even in the most extreme conditions, year after year.
Computer Balanced Augers with Reinforced Flighting

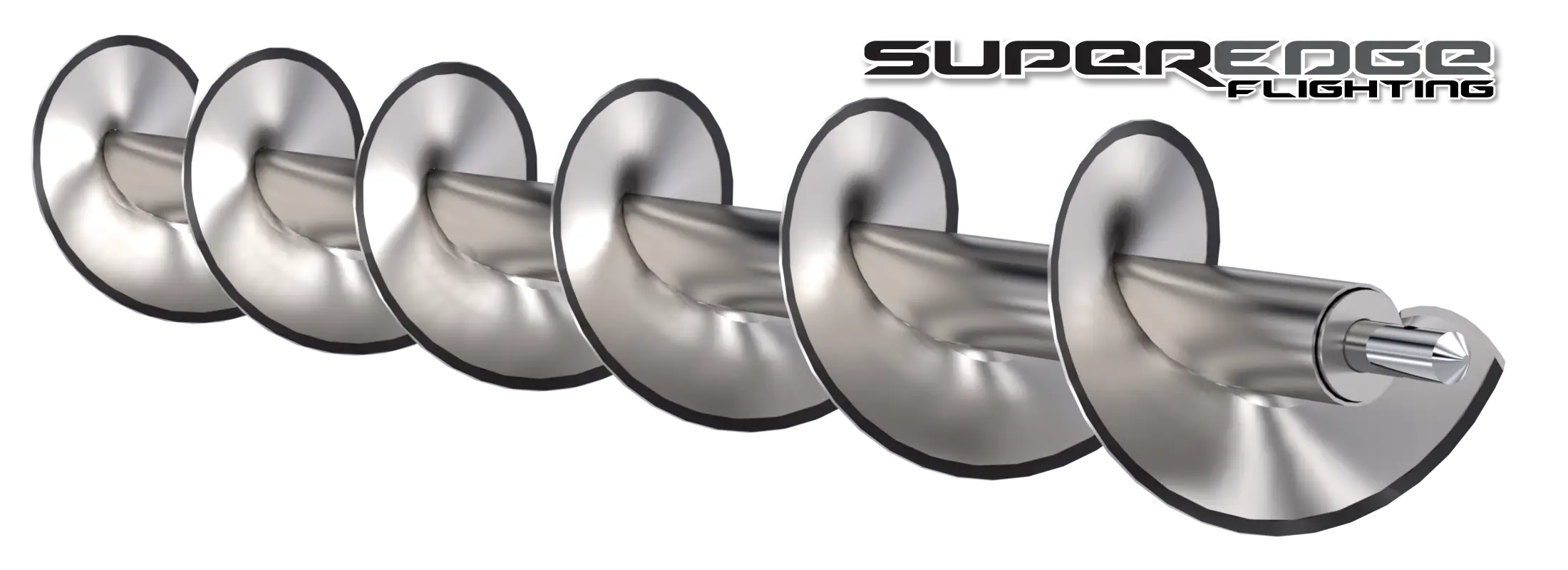

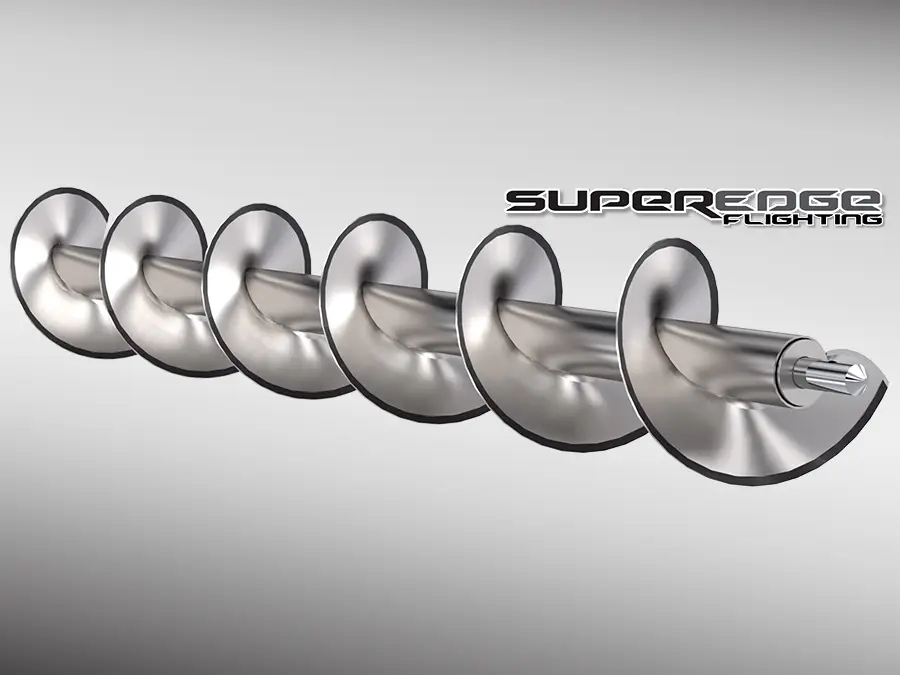

Computer balanced (within 1 oz.) 20" horizontal and 22" vertical augers with Super Edge reinforced flighting for maximum unload speed and durability.
Excellent Cleanout

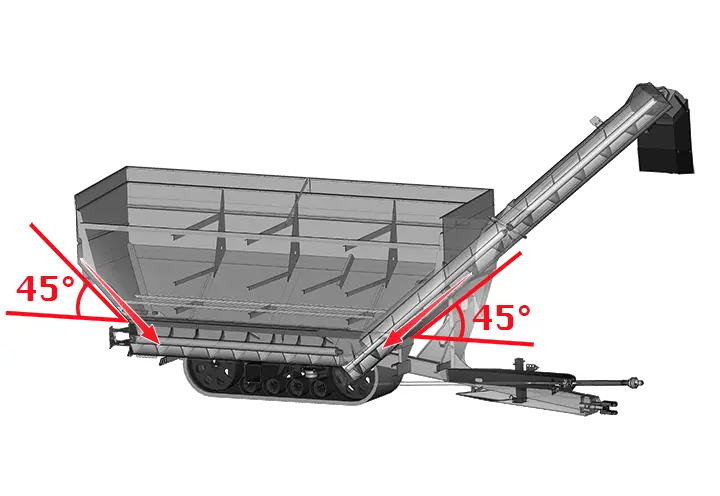

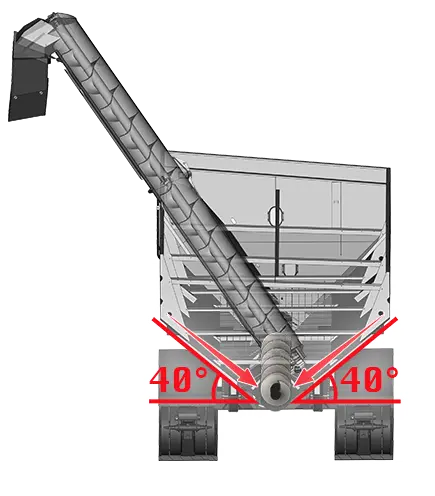

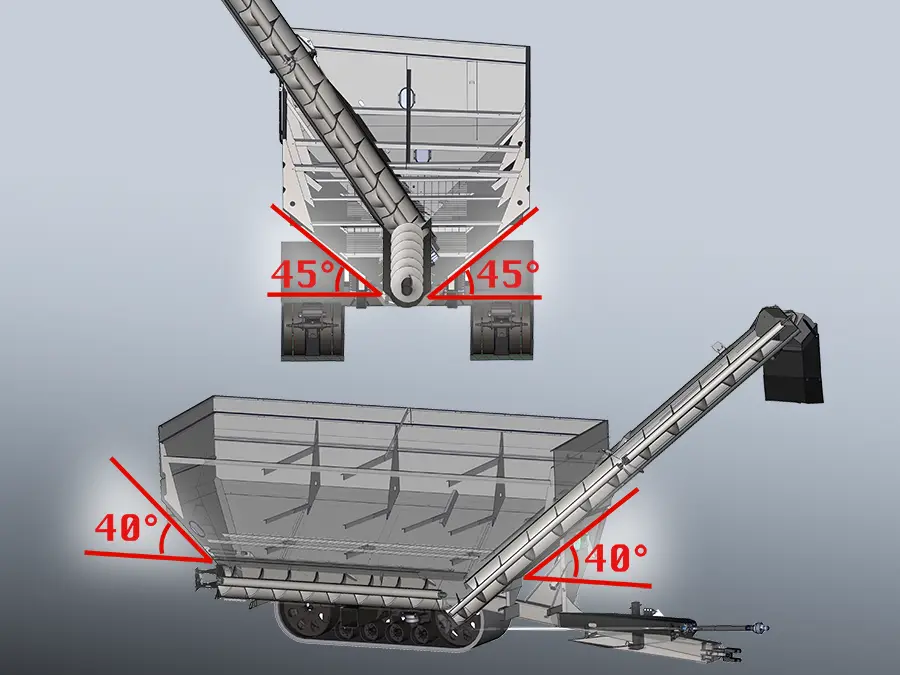

J&M dual auger grain carts have built a solid reputation for excellent cleanout...even in high moisture grain. The secret is in the steep slopes of the tank design. Slopes of 40° on the sides and 45° in the front and back prevent bridging of high mositure grain and rice.
Miscellaneous Standard Features
- Patented Side-Shooter spout design
- Easy access side mounted inspection ladder
- Unique auger rest lever design for easy transition between storage and field positions
- Over-running, automatic cut-out clutch for maximum durability
- Heavy-duty jack stand assembly
- Graphite-coated interior for efficient unload and excellent cleanout
- Hydraulic hose and electric cable organizer
- Bolt-on bottom tang hitch
- Balanced tongue weight
Miscellaneous Standard Features
- Patented Side-Shooter spout design
- Easy access side mounted inspection ladder
- Unique auger rest lever design for easy transition between storage and field positions
- Over-running, automatic cut-out clutch for maximum durability
- Heavy-duty jack stand assembly
- Graphite-coated interior for efficient unload and excellent cleanout
- Hydraulic hose and electric cable organizer
- Bolt-on bottom tang hitch
- Balanced tongue weight

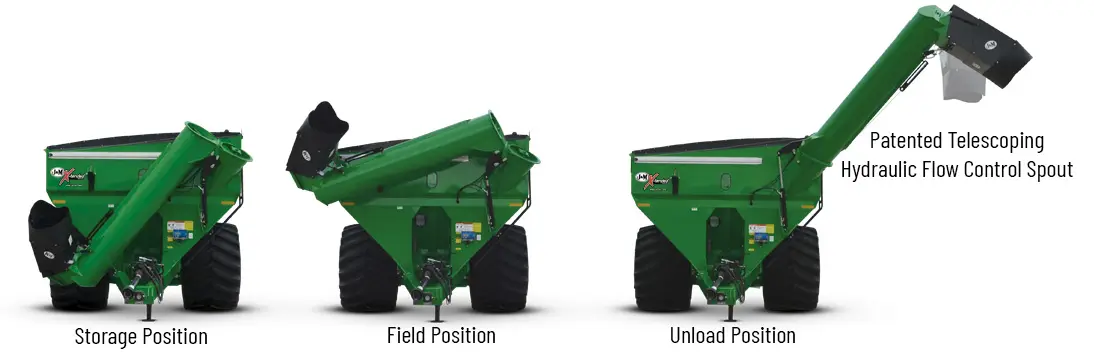

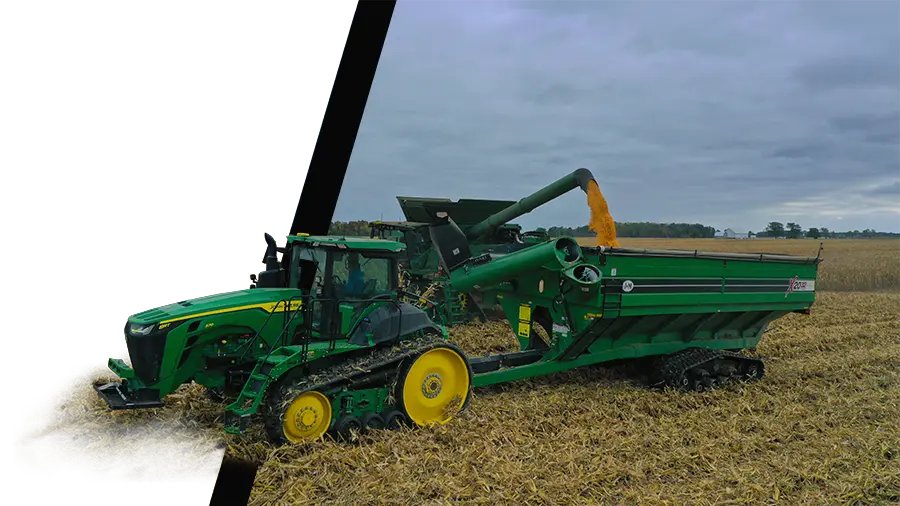

Patented X‑Tended Reach Folding Auger

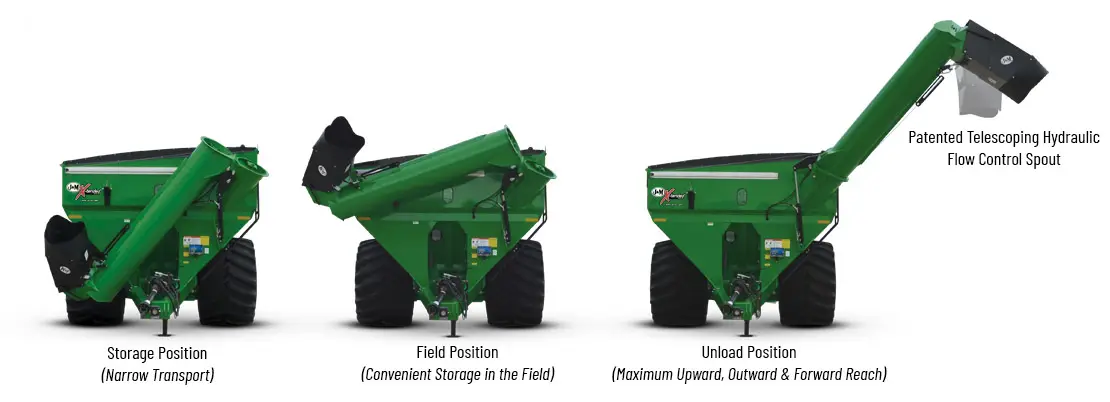

- Three Position Upper Auger Design
- Storage Position (Narrow Transport)
- Field Position (Convenient Storage in the Field)
- Unload Position (Maximum Upward, Outward & Forward Reach)
Patented Side‑Shooter
Patented Side Shooter Auger with Hydraulic Flow Control
Spout and Removable Rubber Spout For Extra Clearance
Side Mounted Ladder
Easy-Access Side Mounted Inspection Ladder with Compact Storage Design
Dual Auger X-Tended Reach Grain Cart Options

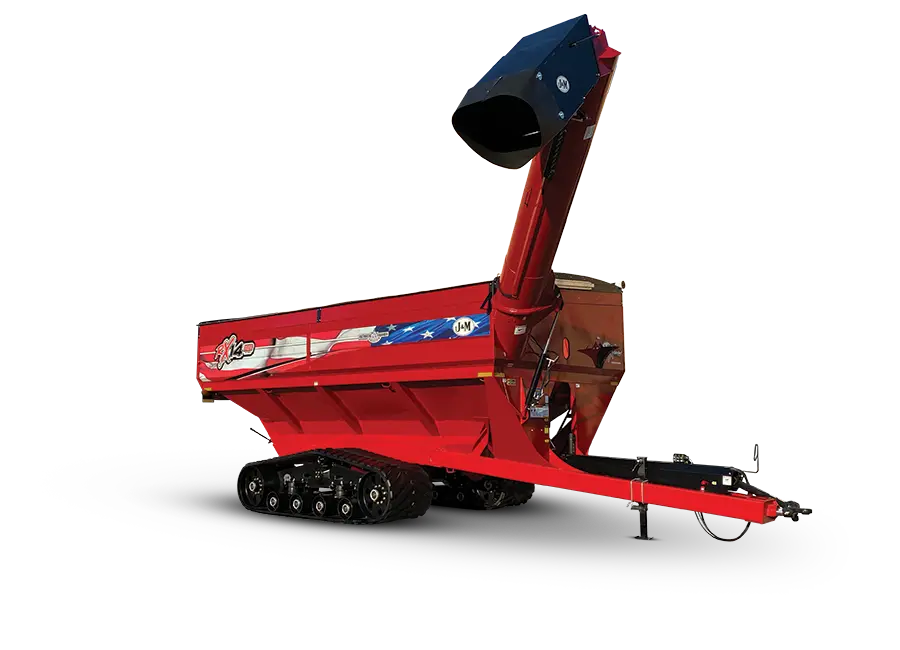

Right-Side Auger Grain Carts New
J&M now offers a right-side unload auger on select X-Tended Reach grain carts to increase operator visibility and efficiency.
The biggest benefit of a right-side auger is that it makes unloading easier and more comfortable. Tractors are designed with controls and monitors on the right side of the cab. Compared to a traditional left-side auger grain cart, putting the auger on the right side makes it much easier to watch the grain cart unload, use the tractor controls and track monitors at the same time. This reduces the risk for mistakes especially during stressful moments and greatly diminishes the amount of twisting and turning while operating the grain cart.
Learn more about Right-Side Auger Grain Carts
Swivel Ball Hitch New
The tight articulation on a J&M swivel ball hitch eliminates grain cart “slam” which reduces the shock loads on the tractor and grain cart, providing smoother operation for the farmer.
Additional benefits of changing to a J&M swivel ball hitch:
- The large contact area and tight connection increase the life of the tractor drawbar/drawpin, implement hitch and hitch scale bar
- Industry-leading 45° of articulation
- Easy maintenance
- Grease zerks are protected inside of hitch ring
- Ball is removed out of the bottom of the hitch ring by simply rotating a half turn and aligning with installation slot
Scale Options
J&M scale systems allow you to accurately track your crops, safely load the semi within legal limits, and quickly document crop sharing and insurance records. A scale system can also help plan future soil preparations, plantings, and fertilizing needs, ensuring you spend only what you need. Used correctly, a scale system can quickly pay for itself.
Learn more about scale options
Scale Add-on Options
- Auto-Gate Shut-Off Kit for predetermined weight. For use with Digi‑Star GT 560 indicator.
- Thermal Printer for Digi‑Star indicator
- Auto-Gate Shut Off Kit for J&M iFarm System
Patriotic Farmer Edition
To honor the patriotism of the American farmer, upgrade to the Patriotic Farmer Edition with an American flag stripe. A portion of the proceeds generated from the American flag decal will be donated to national nonprofit organizations that provide assistance to farm families who have experienced a major injury, illness or disaster, or mobilize veterans to transition them from military service to farming.
Learn more about Patriotic Farmer Edition grain carts
Roll Tarp Kit
During harvest time, the weather is unpredictable. Keep your valuable commodities safe from the weather by adding an 18 oz. roll tarp. The Glide Right roll tarp system features grooved rollers that roll along the edge of the end caps for consistent tracking and reduced misalignment. Front and rear return springs apply even tension to each end of the tarp to reduce binding and prevent uneven rolling compared to designs that only utilize one spring and cable assembly. An optional electric roll tarp allows you to remotely open and close.
Learn more about glide right roll tarp system
LCD Camera Kit
An LCD camera kit can give you maximum visibility to safely transport from field to field and efficiently receive grain from the combine or unload in the trailer..
Miscellaneous Options
- 1⅜"-21 Spline PTO in place of standard 1¾" PTO.
- Safety chain for grain cart.
Dual Auger X-Tended Reach Grain Cart Specs and Dimensions
SPECIFICATIONS
| 1132 | 1432 | 1732 | 2032 | 2332 | |
|---|---|---|---|---|---|
| Vertical Auger | 22" | 22" | 22" | 22" | 22" |
| Horizontal Auger | 20" | 20" | 20" | 20" | 20" |
| Unload Rate (bu/min) | 740+ | 760+ | 790+ | 810+ | 840+ |

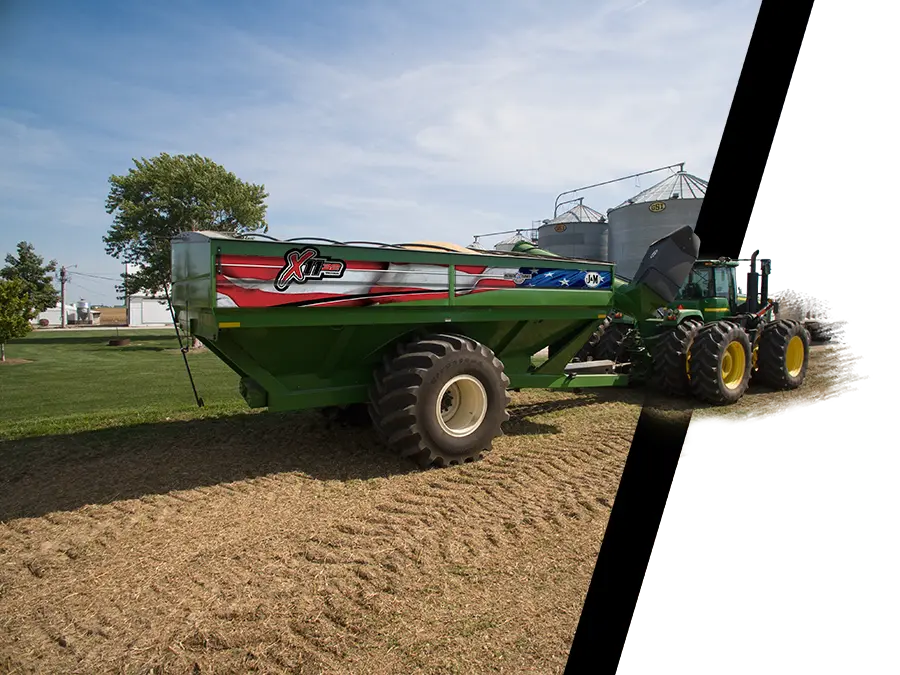

SINGLE WHEELS
| 1132 | 1432 | |
|---|---|---|
| Capacity | 1,150 Bushels | 1,450 Bushels |
| Wheels (2) | 30×32, 32×36 or 44×32 |
44×32 |
| Tires (2) | IF900/60R32, 1050/50R32 or IF1250/50R32 |
IF1250/50R32 |
| Hubs (2) | 10 Bolt or 20 Bolt | 10 Bolt or 20 Bolt |
| Spindles (2) | 6" Diameter | 6" Diameter |
| Tongue Weight Empty Loaded |
2,600 lbs 3,800 lbs |
2,900 lbs 4,200 lbs |
| Total Weight (approx.) | 15,649 lbs | 17,675 lbs | Model 1132 and 1432 weighed with 900/60R32 tires. |

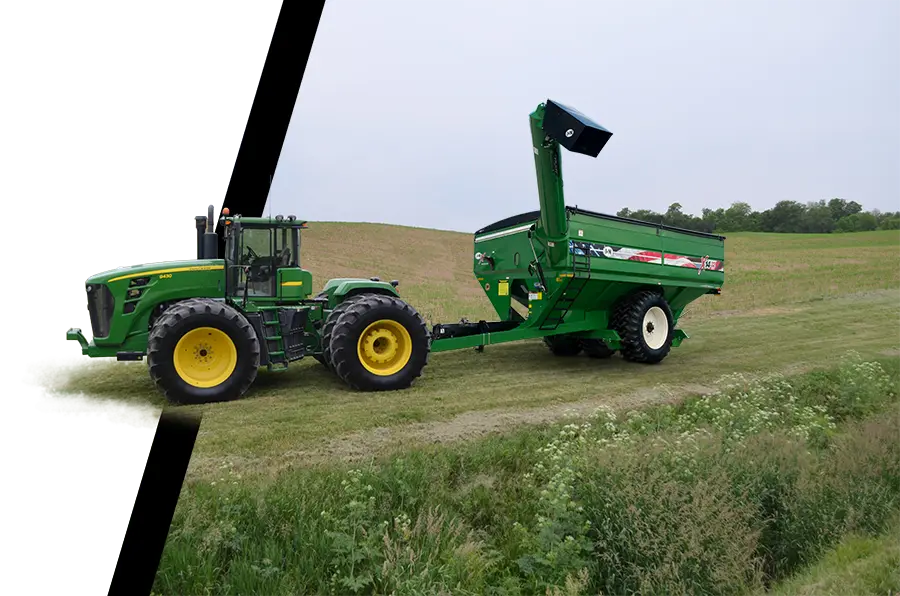

WALKING TANDEM DUAL WHEELS
| 1132 | 1432 | |
|---|---|---|
| Capacity | 1,125 Bushels | 1,425 Bushels |
| Wheels (4) | 16x42, 18x42 |
18x42 |
| Tires (4) | 520/85R42 | 520/85R42 |
| Spindles (4) | 4½" Diameter | 4½" Diameter |
| Total Weight (approx.) | 19,121 lbs. | 19,507 lbs. | Weighed with 520/85R42 lug tires (set of 4). |
TRACKS
| 1132 | 1432 | 1732 | 2032 | 2332 | |
|---|---|---|---|---|---|
| Capacity | 1,175 Bushels | 1,475 Bushels | 1,675 Bushels | 1,970 Bushels | 2,260 Bushels |
| Total Weight (approx.) | 23,761 lbs | 24,147 lbs | 32,665 lbs | 33,176 lbs | 33,683 lbs |
| Compaction Rate V4MT V4 36" STX 2 42" STX 2 46" STX 2 |
13.2 psi 11.0 psi 10.2 psi 8.9 psi 8.1 psi |
13.2 psi 12.2 psi 10.6 psi 9.6 psi |
13.9 psi 12.0 psi 10.9 psi |
15.9 psi 13.7 psi 12.4 psi |
13.9 psi |
Model 1132 and 1432 weighed with 36"Stabilizer Trax2. Model 1732, 2032 and 2332 weighed with 46" Stabilizer Trax2. |
DIMENSIONS
| 1132 | 1432 | 1732 | 2032 | 2332 | |
|---|---|---|---|---|---|
| A | 9'-11" | 10'-9" | 9'-10" | 10'-8" | 11'-6" |
| B | 11'-9" | 11'-9" | 13'-9" | 13'-9" | 13'-9" |
| C | 5'-10" | 5'-10" | 5'-10" | 5'-10" | 5'-10" |
| D | 11'-0" | 11'-0" | 11'-0" | 11'-0" | 11'-0" |
| E | 21'-8" | 21'-8" | 21'-4" | 21'-4" | 21'-4" |
| F | 6'-0" | 6'-0" | 6'-4" | 6'-4" | 6'-4" |
| G | 9'-0" | 9'-0" | 10'-2" | 10'-2" | 10'-2" |
| H | 12'-0" | 12'-0" | 14'-0" | 14'-0" | 14'-0" |
| I | 17'-2" | 17'-2" | 17'-7" | 17'-7" | 17'-7" |
| J | 13'-1" | 13'-1" | 13'-0" | 13'-0" | 13'-0" |
| K | 1'-8" | 1'-8" | 1'-8" | 1'-8" | 1'-8" |
| L | 1'-4" | 1'-4" | 1'-9" | 1'-9" | 1'-9" |
| M | 22'-3" | 22'-3" | 25'-4" | 25'-4" | 25'-4" |
| N | 32'-10" | 32'-10" | 40'-0" | 40'-0" | 40'-0" |
| O | 1'-5" | 1'-5" | 1'-10" | 1'-10" | 1'-10" |
| P | 22'-10" | 22'-10" | 30'-0" | 30'-0" | 30'-0" |
| Q | 10'-11" | 11'-9" | 10'-10" | 11'-8" | 12'-6" |
| R | 13'-8" | 13'-8" | 13'-8" | 13'-8" | 13'-8" |
| Max Tarp Height | 11'-5" | 12'-3" | 11'-4" | 12'-2" | 13'-0" |
| *Measured with 20” hitch height. | |||||
| *Model 1132 and 1432 measured with V4 Tracks. | |||||
| *Models 1732, 2032, 2332 measured with 46" Stabilizer Trax. | |||||
Compaction Rate
| 1132 | 1432 | 1732 | 2032 | 2332 | |
|---|---|---|---|---|---|
| 900/60R32 Lug (191 LI) | 31 | N/A | N/A | N/A | N/A |
| 1050/50R32 Lug (185 LI) | 27 | N/A | N/A | N/A | N/A |
| IF1250/50R32 Lug (195 LI) | 20 | N/A | N/A | N/A | N/A |
| IF1250/50R32 Lug (201 LI-Alliance) | N/A | 26 | N/A | N/A | N/A |
| IF1250/50R32 Lug (201 LI-Firestone) | N/A | 25 | N/A | N/A | N/A |
| IF520/85R46 Lug (169 LI-Firestone) | 24 | 30 | N/A | N/A | N/A |
| 520/85R46 Lug (169 LI-Alliance) | 26 | 32 | N/A | N/A | N/A |
| V4 MT Tracks (36"×106") | 13.2 | N/A | N/A | N/A | N/A |
| V4 Tracks (36"×139") | 11.0 | 13.2 | N/A | N/A | N/A |
| STX2 Trax (36"×150") | 10.2 | 12.2 | 13.9 | 15.9 | N/A |
| STX2 Trax (42"×155") | 8.9 | 10.6 | 12.0 | 13.7 | N/A |
| STX2 Trax (46"×150") | 8.1 | 9.6 | 10.9 | 12.4 | 13.9 |
